GARDALL SAFES

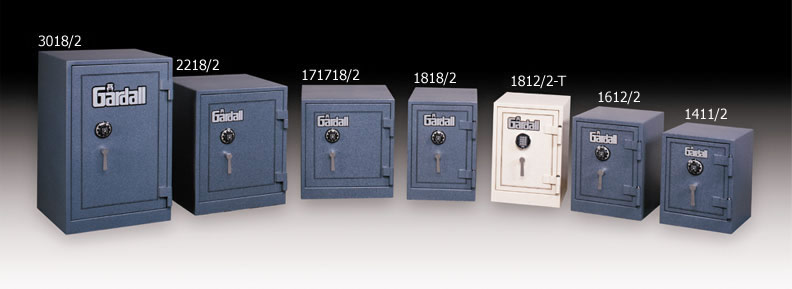

U.L. 2-Hour Fire Safes (Sm and Med)

Can Your Business Survive Record Losses From Fire?

Statistics show that if a company's records are lost in a fire, 17% can no longer furnish a financial statement, 14% suffer a reduction in credit rating and 43% go out of business completely. No home or business is safe from fire. Your vital records and possessions are only as safe as the quality of protection you provide for them. With Gardall fire resistive safes, you can be confident your records will survive.







Standard Features

Options

Standard colors: Sandstone or gray.



Model	Outside Dimensions H W D	Inside Dimensions H W D	Cubic Inches	Weight (lbs.)	Shelves
1411/2	21½” 16¼” 18¾”	14” 11” 10¼”	1579	250	0
1612/2	23¼” 17¼” 19¾”	16” 12” 11¾”	2256	298	1
1812/2	25” 17¼” 19¾”	18” 12” 11¾”	2538	313	1
1818/2	25” 17¼” 25¾ ”	18” 12” 17¾”	3834	392	1
171718/2	25” 23¼ ” 25¾”	18” 18” 17¾”	5751	487	2
2218/2	29¼” 23¼” 25¾”	22” 18” 17¾”	7029	525	2
3018/2	37¼” 23¼” 25¾”	30” 18” 17¾”	9585	620	3







These Gardall fire resistive safes are designed and tested to withstand severe fire with outside temperatures reaching 1750°F. Interior temper-atures will not exceed 350°F within two hours. The charring of paper occurs at 405°F. All Gardall fire resistive safes provide a comfortable margin that protects your valuables. But these models don't stop at just fire protection. They also have Class “B” burglary resistive features built in right at the factory. And don't forget, every fire insurance policy states that “proof of loss” is required for claims. When your business or personnel inventories are locked inside a Gardall fire resistive safe, your “proof of loss” is protected.

Standard Features

Lock Options

Standard colors: Gray or sandstone.

Manufacturers 2-Hr. Fire Label

The above mentioned Gardall fire resistive safes carry a 2-hour Manufacturers Fire Label.

A safe similar in construction was tested by an independent testing facility. The furnace temperature reached 1750°F for a period of time exceeding 2 hrs., before the interior of the safe reached 350°F.

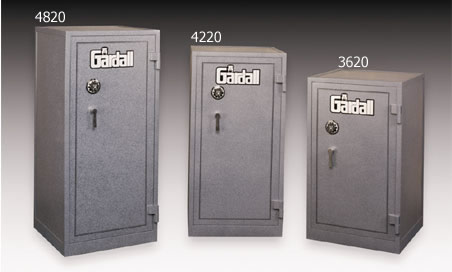

Model	Outside Dimensions H W D	Inside Dimensions H W D	Cubic Inches	Approx. Weight (lbs.)	Shelves
3620	45½” 25¾” 26¾”	36¼” 20½” 19½”	14,490	804	3
4220	51½” 25¾” 26¾”	42¼” 20½” 19½”	16,890	871	3
4820	57½” 25¾” 26¾”	48¼” 20½” 19½”	19,285	975	4



Add 2” to outside depth for dial and handle.   All specifications are subject to change without notice.

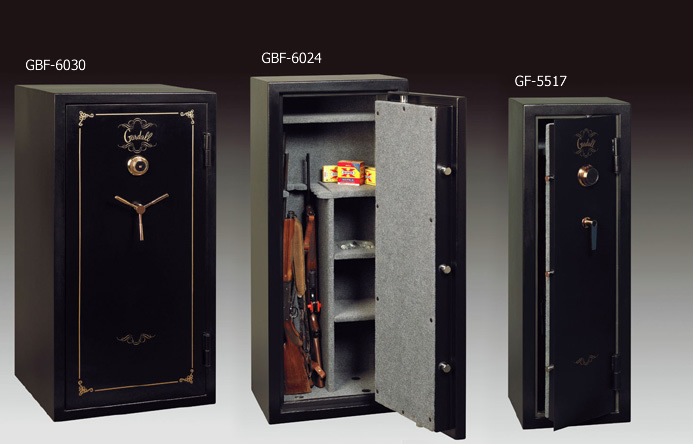

All GBF safes were tested by the manufacturer along side a U.L. listed one-hour fire safe in an independent fire testing facility. The GBF safe actually outperformed the U.L. fire safe by 15 minutes. The exterior of the safe was heated to 1700°F for one hour and during that time the interior temperature of the safe was less than 270°F. A letter of certification is available upon request. All GBF safes carry Gardall's Lifetime Replacement Guarantee.

Standard Features

• Door: 1 1 /2” profile door panel with overall 4” thickness, insulated for protection against fire, with a “B” burglary rating.
• Body: 1/8” plate steel with 2 1 /2” of insulation and a metal inner shell.

Anti Burglary Components:

• Hard plate to deter drilling.
• Independent re-locking device.
• Solid steel handle designed to shear off under attack.
• Three massive 1” round chrome plated locking bolts.
• Full length locking bar on hinge side of safe deterring prying attacks.
• One anchoring hole in base for easy bolt down. (hardware included)
  • lag bolt- ½”ø x 3½”long
• Lifetime Replacement Guarantee
• Intumescent seal to ensure a positive door seal in case of fire.

Labels

• U.L. Residential Security Container Burglary Label (RSC)
• Manufacturer's 350° 1 Hour Fire Label

Lock Options

• Electronic, Combination, Single Key

Deluxe Option

(additional charge applies)

• Gold handle, dial and trim with Hunter Green, Black, and Maroon

Standard colors: Gardall gray or sandstone.

Optional colors: Black, hunter green, maroon

* Intumescent means an expandable door seal meant to protect your valuables from fire, smoke, and water damage.

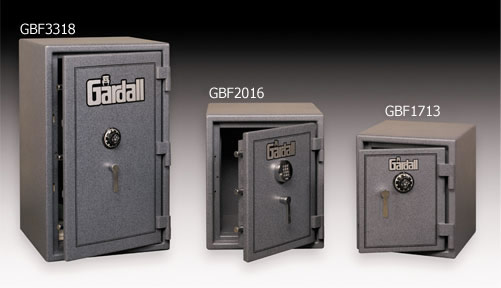

Model	Outside Dimensions H W D	Inside Dimensions H W D	Cubic Inches	Approx. Weight (lbs.)	Shelves
GBF1713	21¼” 18¼” 20¼”	16½” 13” 13¼”	2,842	355	1
GBF2016	25¼” 21¾” 221/8”	20” 16½” 15¼”	5,032	470	1
GBF3318	38¼” 23” 26¼”	33” 17¼” 18”	10,246	796	2





Standard Features

• Push button electronic lock with key day lock
• 3 way bolt work with bolt detent
• Push button electronic lock – 6-digit combo

With the growing number of homes and offices using computers, the protection of magnetic media has become critical. The loss of personal as well as business records can be costly and devastating. The average fire safe is not suited to protect your electronic records. Gardall's media safes are designed to meet the additional requirements of protecting magnetic media. For your convenience we offer two sizes to choose from.

Protect Your Electronic Media

• Office Computer Back-Ups
• Home Computer Back-Ups
• Digital Pictures
• Music CDs
• DVDs
• Video Tapes
• One-hour fire protection for media products
• No center bolt-down hole
• Fire rating- 1832°F outside, 125°F interior
• Uses 2 AA batteries



Model	Outside Dimensions H W D	Inside Dimensions H W D	Approx Weight (lbs.).	Shelves

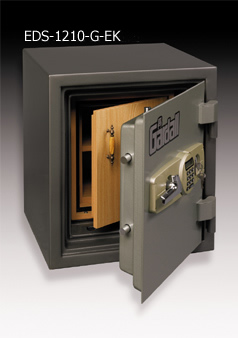

EDS-1210-G-EK	21½” 19½” 18½”	11” 97/8” 7¾”	244	1
EDS-2214-G-EK	31½” 23¼” 20”	20¾” 12½” 8”	393	1



Add 1½” to outside depth for dial and handle.

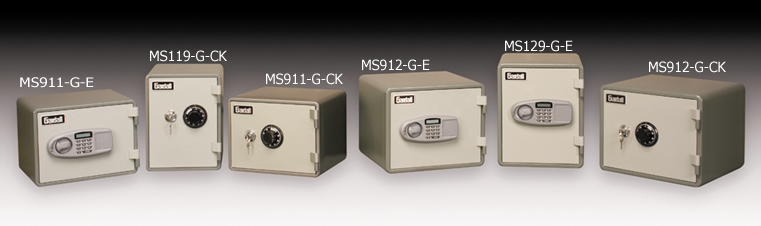

Gardall offers a full range of U.L. approved fire resistive microwave style safes. These safes are made to Gardall's exact specifications and brought to you with the same care and quality you have come to expect from Gardall. Microwave style safes come with either mechanical or electronic style locks. All fire safes have plated interlocking bolts that extend into the safe walls to prevent tampering and removal of doors. The doors are precision built of extra heavy steel, full swinging on heavy duty hinges with interlocking, tongue and groove closure on all sides of the door frame. All safes come with a center bolt down hole and hardware to anchor the safe down.

Standard Features

• Programmable electronic lock with over-ride
• One-hour fire safe label*
• Individual packaging for UPS type shipping
• Two compact sizes
• Powder coated paint for increased durability
• Center bolt down ( hardware included )
• Pull-out shelf for storage
• Dual security key and combination (mechanical only)
• Gardall warranty for all products



Model	Outside Dimensions H W D	Inside Dimensions H W D	Approx. Wt. (lbs.)	Description
MS911-G-CK	11½”15¼” 12½”	8½” 12” 8½”	61	Horizontal 1 Hr Fire Safe with Combination Lock
MS911-G-E	11½”15¼” 12½”	8½” 12” 8½”	61	Horizontal 1 Hr Fire Safe with Electronic Lock
MS119-G-CK	15¼”11½” 12½”	12” 8½” 8½”	61	Vertical 1 Hr Fire Safe with Combination Lock
MS119-G-E	15¼”11½” 12½”	12” 8½” 8½”	61	Vertical 1 Hr Fire Safe with Electronic Lock
*MS912-G-CK	13½”16¾” 15¼”	9½” 12¾”10¼”	85	Horizontal 1 Hr Fire Safe with Combination Lock
*MS912-G-E	13½”16¾” 15¼”	9½” 12¾”10¼”	85	Horizontal 1 Hr Fire Safe with Electronic Lock
*MS129-G-CK	16¾”13½” 15¼”	12¾” 9½” 10¼”	85	Vertical 1 Hr Fire Safe with Combination Lock
*MS129-G-E	16¾”13½” 15¼”	12¾” 9½” 10¼”	85	Vertical 1 Hr Fire Safe with Electronic Lock





* U.L. 350° One-Hour Label – Fire and Impact Test Add 1½” to outside depth for dial and handle.





Heavy duty construction 2” thick door, 3” thick body

• Composite construction door & body
• Independent glass re-locking systemFB-1212
• 3 spoke chrome-plated vault handle
• 1 hour U.L. 350° fire label
• U.L. RSC Burglary Label
• Center bolt down for ease of installation (hardware included)
• 1 1 /4” chrome plated locking bolts
• Attractive two tone paint for increased durability
• U.L. Group II combination (S&G) lock standard



Model	Outside Dimensions H W D	Inside Dimensions H W D	Approx. Weight (lbs.)	Shelves

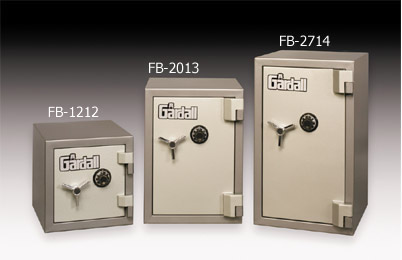

FB1212	17¾” 17¾” 20½”	12” 12” 12¾”	205	1
FB-2013	27” 20” 20½”	21½” 14¾” 13 ”	312	2
FB-2714	33½” 20” 22¾”	27½” 14 1/8 ” 14¼”	412	2



Add 2” to outside depth for dial and handle.

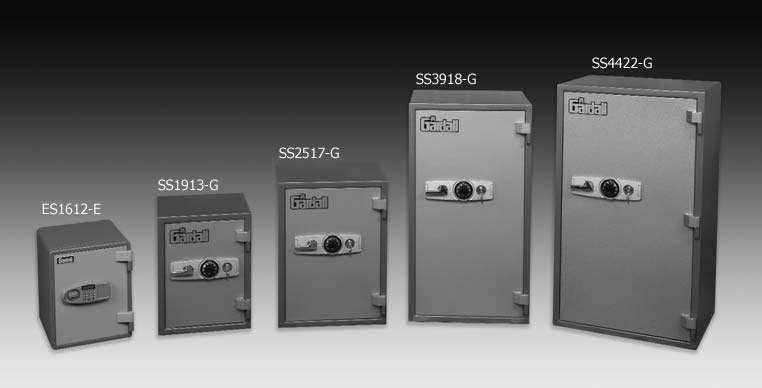

Gardall offers a full range of one-hour record safes, for residential or commercial use. All five models are available with an attractive two-tone glossy finish. U.L. 350° one-hour label where designated (fire and impact tests).

• Center bolt-down hole is standard
• Hardware included
• 1-shelf/1-tray models 1612-2517
• 2-shelves/1-tray models 3918-4422



Model	Outside Dimensions H W D	Inside Dimensions H W D	Approx. Weight (lbs.)
SS1612-G-CK?	20” 16¼” 19¼”	14½” 12” 13¼”	123
ES1612-G-E?	20” 16¼” 19¼”	14½” 12” 13¼”	123
SS1913-G-CK?	25¼” 19¼” 18¼”	18¾” 12½” 11¾”	210
SS2517-G-CK?	31¾” 23¾” 25”	24¾” 161/3” 13¼”	344
SS3918-G-CK?	46½” 25½”27”	351/8” 18¾” 17¾”	592
SS4422-G-CK?	50¾” 29¼” 25¼”	39½” 22½” 17½”	805



S&G mechanical lock standard ? U.L. 1 hour fire label     Add 1½” to outside depth for dial and handle.





Standard Design Benefits

• CLASS B Insurance Rating – ½” steel door with punch resistant bolt and relocking device to deter forcible entry. 1/4” steel body construction.
• Dual Custody Key Locks – Requires 2 keys to open door for absolute security.
• Finest quality U.L. Group II S&G combination lock – Key changeable combination, capable of 1 million possible choices.
• Triple boltwork with independent relocking device.
• Relocking device – If back cover is knocked off of lock, the independent relock device is activated, preventing bolt withdrawal. Available on either combination or dual key operated doors.
• Rotary Hopper Capacity – 3 3 /4” x 9” x 4” designed to fit most standard money bags and envelopes.

Designed to protect money collection where immediate deposit is required. Deposit can be made into the safe while the door is locked. Exclusive baffle design prevents contents from being removed through the entry opening. Hopper rotor is built into safe body and cannot be removed to gain access to the safe.

• Front Loading Capacity – designed to fit most large money bags – 3” x 10 1 /2” x 7”
• Interchangeable Doors – 2 sizes 9”x 9” and 12”x12”.
• 4 anchoring holes in base.

Standard color: Gray

All specifications are subject to change without notice.

To Operate Rotary Hopper

• Drop contents into the rotor drum, turn rotor slowly (DO NOT SPIN). Check drum to be certain contents have dropped.

To Operate Front Loading Depository

• Pull drop door forward, place items to be deposited inside, release the drop door. Deposited item should drop inside. Open the drop door to be certain.



Model	Outside Dimensions H W D	Inside Dimensions H W D	Cubic Inches	Approx. Weight (lbs.)

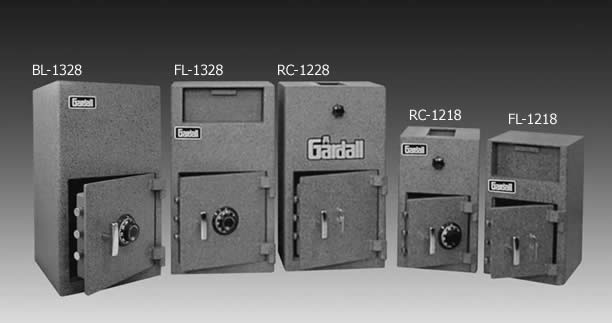

RC-1218	18¼” 11½” 13”	11” 10¾” 10¾”	1271	110
RC-1228	25” 14½” 13”	18¼” 13¾” 10¾”	2700	160
FL-1218	18¼” 11½” 13”	11” 10¾” 10¾”	1271	110
FL-1328	25” 14½” 13”	14¼” 13¾” 10¾”	2100	165
BL-1328	25” 14½” 13”	14¼” 13¾” 10¾”	2100	150



IMPORTANT! These safes are built with the intent of keeping large bills and valuables out of unprotected areas, until deposits can be made. They are not meant to be used as unprotected storage safes for overnight, or lengthy periods of time. Discuss your need with your local safe professional or if you are in doubt, call GARDALL and we will recommend a safe expert.

Above available as (K) dual key lock (C) Group II combination lock, (KO) key-op lock or (ME/LCE) electronic lock. Please specify.

*BL designates depository on back side of safe from door. Add 2” to outside depth for dial and handle.

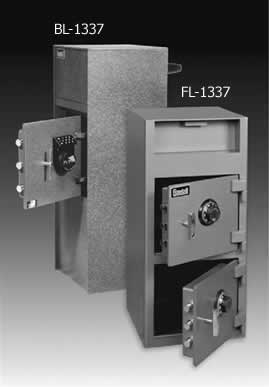

Double Door Depositories - Rotary and Front Loading

Rotary and Front Loading

• RC-1237K-FL/BL-1337K Both doors with dual key lock.
• RC-1237C-FL/BL-1337C Both doors with Group II combination locks or key-op locks.
• RC-1237KC-FL/BL-1337KC Top door dual key lock. Bottom door Group II combination lock or key-op lock.
• RC-1237CK-FL/BL-1337CK Top door Group II combination lock or key-op lock. Bottom door dual key lock.

Standard Design Features

• “B” rated double door depository. Top compartment designed for drop area.
• Bottom compartment for storage of valuables or small amounts of change.
• For more capacity either mode can be furnished with only one door using the entire inside for the drop area. (Single door top or bottom).
• Interchangeable doors – key operated doors will change to combination lock door with ease.
• FL opening 2 3 /4” x 10 1 /2” x 7 1 /2”

Available with electronic push-button lock Standard color: Gray



Model	Outside Dimensions H W D		Inside Dimensions H W D	Cubic Inches	Door Size	Approx. Weight(lbs.)
RC-1237	36¾”14½” 13”	Top Bottom	14¾” 13¾” 10¾” 14¾” 13¾” 10¾”	2180 2180	12”x12”x½”	220
FL-1337	36½”14½” 13”	Top Bottom	12½” 13¾” 10¾” 13¾” 13¾” 10¾”	1848 2032	12”x12”x½”	215
*BL-1337	36½”14½” 13”	Top Bottom	12½” 13¾” 10¾” 13¾” 13¾” 10¾”	1848 2032	12”x12”x½”	215



Safes available as (K) dual key lock (C) Group II combination lock, (KO) key-op lock or (E) electronic lock. Please specify.

*BL designates depository on back side of safe from door. Add 2” to outside depth for dial and handle.

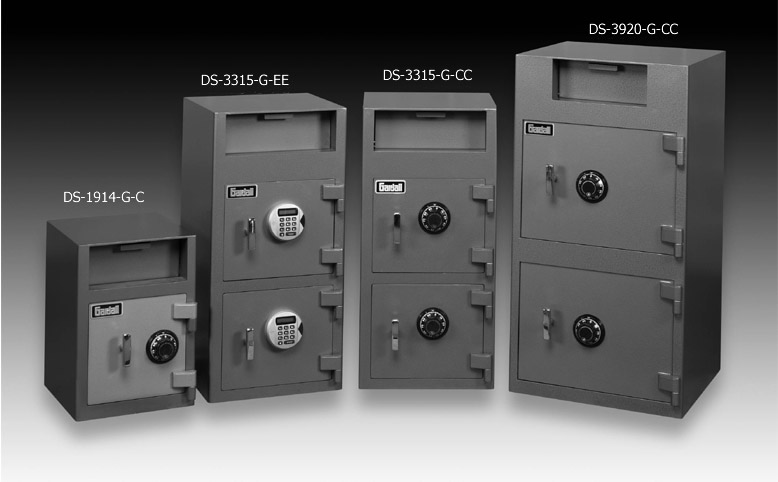

Front Loading Depository Safes

Single Door

• “B” rated solid ½” thick steel door 1/4” body
• 3 way locking bolts
• Anchoring holes for ease of installation
• Anti fish baffles
• Electronic welding for strength
• UL Group II combination lock (S&G)
• Powder coated paint for durability

Double Door

• Solid steel locking bar to prevent door removal
• Front load style for added security and ease of deposits
• Electronic welding for strength and durability
• Powder coated paint for durability

Standard Features

• ½” plate steel door
• 1/4” thick body
• External re-locker
• Anti fish sawtooth baffle
• Excellent for mounting in delivery vehicles
• Mounting holes pre-drilled
• Available in 3 sizes
• Laser cut door for exact fit



Add 1½” to outside depth for dial and handle. ? S&G mechanical locks standard.





Standard Features

• Recessed door to help deter pry attacks.
• Hard plate around the lock, with independent relocker.
• Available with Rotary or Front Loading depository.
• Interiors – 2 adjustable shelves or 5 fixed shelves.

• Anchoring holes in bottom to bolt safe down.
• 3–1” round bolts and full length dead bolt.
• Inside compartment 9”H x 21”W x 13”D (FL & WB models)
• ½” plate steel door on Model 3522 and 3020

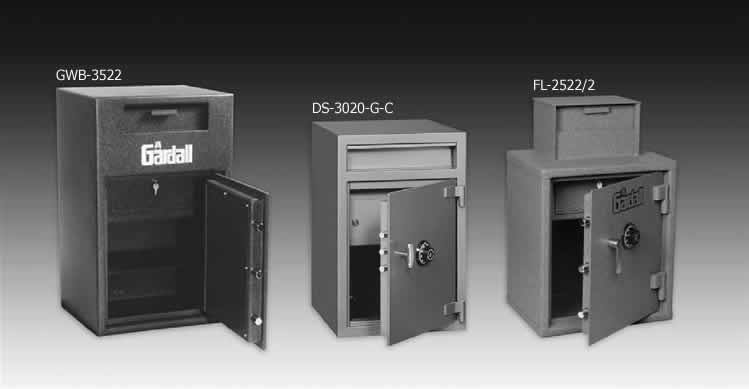

Model	Outside Dimensions H W D	Depository Door H W	Interior	Weight
FL-2522/2	34” 22” 17¼”	3½” 13”	Drop compartment with cam lock 2 adjustable, removable shelves	259
FL-2522/5	34” 22” 17¼”	3½” 13”	Drop compartment with cam lock 5 fixed location, removable shelves	275
DS-3020-G-C ? •	30” 20” 20”	3” 16½”	Inside 12¼” 19½” 19½” Comp. 7” 19½” 16”	233
GWB-3522•	35” 22” 16½”	3½” 13”	Drop compartment with cam locks and 2 shelves, ½” plate steel door	307



”B” rate construction ?S&G mechanical locks standard.

Add 2” to outside depth for dial and handle.

FL/RC compartment size 5½” x 21½” x 10½”. GWB compartment size 8½” x 21 3 /8” x 10½”





Standard Features

• Group II U.L. listed combination or electronic push-button locks.
• Hard plate between the lock and dial ring.
• Full length locking bar hinge side of door.
• Independent relocking device to deter forced entry.
• Door frame is reinforced on bolt side.
• Coil spring assist on all doors for ease of opening and closing.
• Dust cover included.

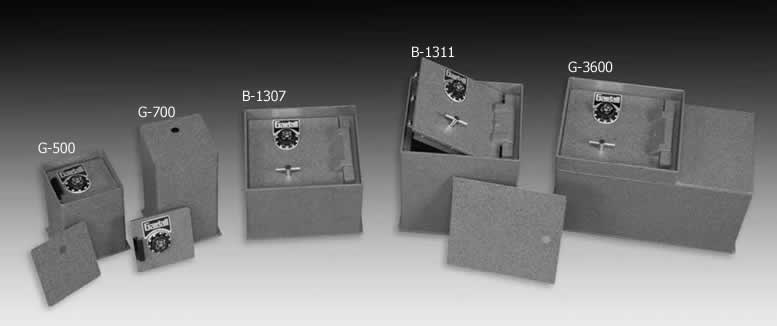

Commercial In-Floor Safes

• “B” rate burglary construction.
• 3 active 1” bolts.

Safe Options

• Standard color: Gray

Pyramid Shape Body for Solid Anchoring in Floor
All specifications are subject to change without notice.



Model	Outside Dimensions H W D	Inside Dimensions H W D	Cubic Inches	Approx. Wt. (lbs.)	Door Size
B-1307	14½” 12½” 12¼”	14” 12” 7½”	1260	108	12”x12”x½”
B-1311	14½” 12½” 17¼”	14” 12” 13”	2184	133	12”x12”x½”
G-3600	23½” 12½” 17¼”	22¾” 12” 13½”	3686	169	12”x12”x½”



Square Tube Safe with Liftout Head



Model	Outside Dimensions H W D	Inside Dimensions H W D	Cubic Inches	Approx .Wt. (lbs.)	Door Size
G500	8” 8” 11¼”	75/8” 75/8” 9”	523	36	7½”x7½”x½”
G700	8” 8” 15¼”	75/8” 75/8” 13”	755	42	7½”x7½”x½”

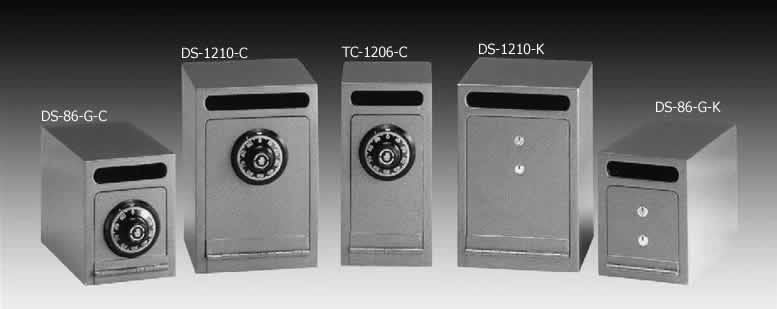

Model	Outside Dimensions H W D	Inside Dimensions H W D	Weight (lbs.)
DS-86-G-K	8” 6” 12”	7½” 5½” 11”	31
DS-86-G-C	8” 6” 12”	7½” 5½” 11”	31
TC-1206-G-K	12” 6” 8”	101/8” 4¾” 7”	34
TC-1206-G-C	12” 6” 8”	101/8” 4¾” 7”	34
DS-1210-G-K	12” 8” 10”	10¼” 7½” 9”	47
DS-1210-G-C	12” 8” 10”	10¼” 7½” 9”	47

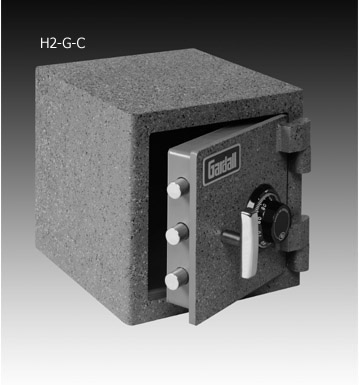

Compact Utility Safes

Designed for use in walls, basements, car trunks, and RV's. Solid steel plate with insurance “B” rated construction. This safealso features a U.L. listed Group II combination lock. Door willinterchange with many other Gardall Safes. ½” pre-drilled mounting holes in base.

Standard Features

• ½” plate steel door
• Independent relock on lock
• S&G combo lock standard



Model	Outside Dimensions H W D	Inside Dimensions H W D	Cubic Inches	Approx. Weight(lbs.)
H-2	11¼” 11½” 11¾”	10¼” 10¾” 10¾”	1184	70







Standard Features

• ½” plate steel door
• ¼” steel body lock, $50.00 list extra
• 5 active 1¼” locking bolts
• S&G Group II combination lock
• Heavy duty hinges
• Full length locking bar to deter prying attack on hinges
• 4 anchoring holes in bottom

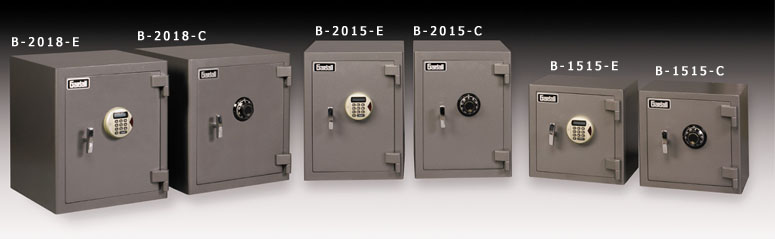

Model	Outside Dimensions H W D	Inside Dimensions H W D	Approx. Weight(lbs.)	Cubic Inches
B-1515?	15” 15¾” 12¼”	14½” 15¼” 10½”	130	2322

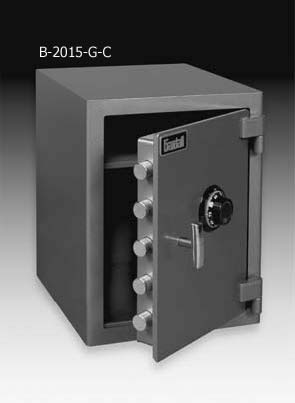

B-2015?	20½” 15¾” 18¼”	20” 15¼” 15¾”	161	4804
B-2018?	21¼” 19¼” 22¾”	20¾” 18¾” 20½”	214	7976
B-2815 *	28½” 23½” 17¾”	28” 22½” 15”	329	8277
B-2818	30” 19” 23”	28” 18” 20”	271	10080



½” steel plate door, ¼” prime steel body ? S&G mechanical locks standard

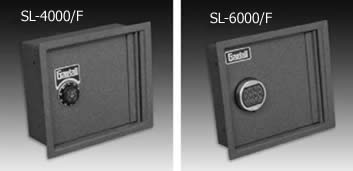

Wall safes have a 1” flange for easier installation. Designed to be recessed into a wall and concealed by a picture or a mirror. Available with key operated lock as an option or without a flange. Available for 4” or 6” walls.



Model	Outside Dimensions H W D	Inside Dimensions H W D	Cubic Inches	Approx. Weight(lbs.)
SL-4000	12½” 14 3/8 ” 4”	12” 13½” 2¾”	446	39
SL-4000/F	12½” 14 3/8 ” 4”	12” 13½” 2¾”	446	41
SL-6000	12½” 14 3/8 ” 6”	12” 14” 4½”	756	44
SL-6000/F	12½” 14 3/8 ” 6”	12” 14” 4½”	756	47



*Available with or without 1” flange







Wall safes have a 1” flange for easier installation. Designed to be recessed into a wall and concealed by a picture or a mirror. Available with key operated lock as an option or 6 digit electronic lock. 3 active bolts in boltwork. Available for 4” or 6” walls.



Model	Outside Dimensions H W D	Inside Dimensions H W D	Approx. Weight (lbs.)
WS-1314-T-K	13¾” 14½” 4”	12” 14” 2½”	27
WS-1314-T-EK	13¾” 14½” 4”	12” 14” 2½”	27
WS-1317-T-K	13¾” 14½” 5½”	12” 14” 3½”	30
WS-1317-T-EK	13¾” 14½” 5½”	12” 14” 3½”	30



Key required to open safe door.

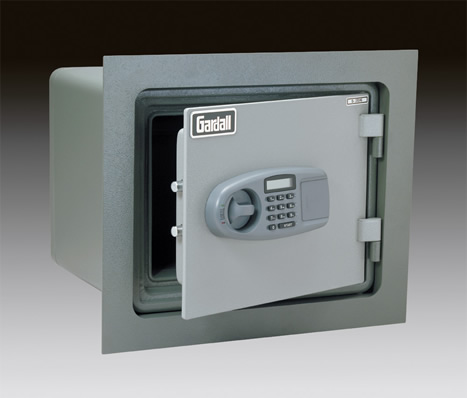

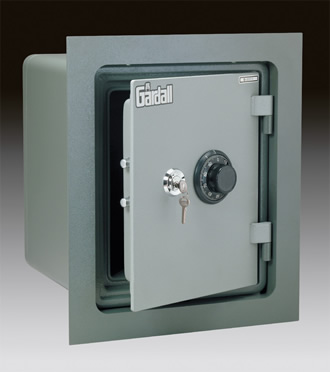

Insulated Wall Safes







Gardall has four models of insulated wall safes. They come with a 2" flange and bolt down hardware to make installation easier. Safes are horizontal or vertical in design and have the same features as our microwave safes.



Model	Outside Dimensions H W D	Inside Dimensions H W D	Approx Weight (lbs)
WMS911-G-CK or E	11½” 15¼” 12½”	8½” 12” 8½”	75
WMS119-G-CK or E	15½” 11½” 12½”	12¼” 8½” *½”	75
WMS912-G-CK or E*	13½” 16¾” 15¼”	9½” 12¾” 10¼”	101
WMS129-G-CK or E*	16¾” 13½” 15¼”	12¾” 9½” 10¼	101



*U.L. 350° One-Hour Label Fire and Impact Test
Add 1½” to outside depth for dial and handle

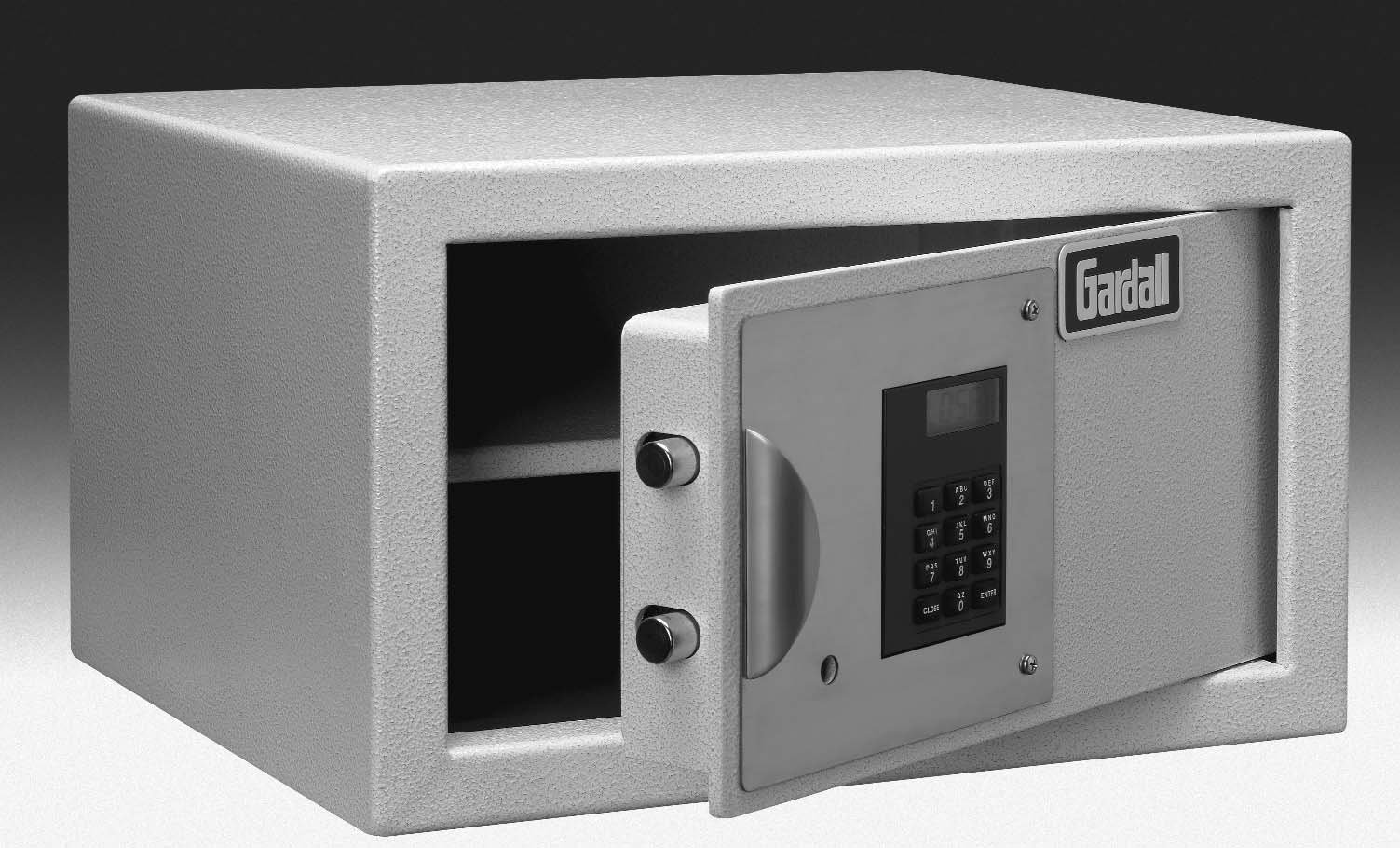

Gardall’s new in-room safe has a durable powder coated finish and a superior electronic locking system. The
highly reliable lock is a one-time use combination that is set by the user for each opening. Each lock has an
electronic over ride code or a manual by-pass key (optional) to open lock if a combo is lost.

Standard Features
• Lock comes with audit trail feature
• 2 to 5 digit user code
• 3 bad codes puts lock in lock-out
• Easy-to-read LCD screen
• 4 holes in back for anchoring



Model	Outside Dimensions H W D	Inside Dimensions H W D	Shelves	Weight (lbs)
GH3-T-E	10¼” 17¼” 14½”	7¼” 14¼” 11¼”	1	50



Add 1” to outside depth for handle.





Gardall Safe Corporation is proud to announce the addition of a full line of firelined safes to its product line. The firelined gun safes were engineered by using our nearly fifty years of experience in commercial fire safe manufacturing. We feel we have created the best designed firelined protection available in a gun safe today.

Standard Features:

3-Way bolt work with ge

• ar drive and 5 active bolts
• 3-spoke handle (GBF-6024, GBF-6030)
• 4 anchoring holes in bottom to bolt safe to floor.
• Thick, 5" door design
• Double layer of fire protection
• Universal interior - 11 gun, 8/16 gun, 14/28 gun

Locks:

• U.L. listed Group II combination (GBF-6024, GBF-6030)
• 3-wheel mechanical lock (GF-5517 only)
• Spy-proof dials
• Electronic lock options (GBF-6024, GBF-6030)





GF-5517 Features:

• 3-Way locking bolts (5 active 1" bolts)
• 3-wheel lock w/ spyproof dial
• Burglary proof handle
• Black powder coated paint
• Safe fits in standard closet
• 11 gun capacity





GBF-6024 Features:

• 3-Way locking bolts (5 active 1" bolts)
• U.L. Group II lock w/ spy-proof dial
• Black powder coated paint
• 2 layers of 5/8" U.L.-rated sheetrock insulation
• U.L. approved intumescent door seal tape
• 8 or 16 gun capacity
• 3-spoke handle





GBF-6030 Features:

• 3-Way locking bolts (5 active 1" bolts)
• U.L. Group II lock w/ spy-proof dial
• Passed fire test at 1400°F for 35 minutes
• 2 layers of 5/8" U.L.-rated sheetrock insulation
• U.L. approved intumescent door seal tape
• Black powder coated paint
• 14 or 28 gun capacity
• 3-spoke handle



Model	Outside Dimensions H W D	Approx.Weight (lbs) .
GF-5517	55¼ ” 17¾” 16¾”	300
GBF-6024	59 1/8 ” 24” 18½”	440
GBF-6030	59 1/8 ” 30” 26 ”	610





Standard Features

• Class “B” Rated interior safe construction. Door of inner safe will interchange with other Gardall safes key lock or combination.
• Fire Resistive Exterior Safe – Insulated to withstand 1850°F for 2 hours.
• Finest Quality Combination Locks – U.L. listed Group II with built-in relocking device or key-op lock.
• Relocking Device – If back cover is knocked off of the lock, the independent relock device is activated, preventing bolt withdrawal.
• Boltwork Interior Door – Triple boltwork with independent relock device.
• Boltwork Exterior Door – Interlocking bolts extend into the safe walls, full length locking bar on hinge side of door to deter forcible entry by removal of hinges.
• Hard plate on both interior and exterior door.
• Available with electronic push-button lock.

Z-4220

Standard colors: Gray or sandstone

Center bolt-down hole standard (hardware included)

All specifications are subject to change without notice.





Model	Outside Dimensions H W D		Inside Dimensions H W D	Cubic Inches	Approx. Weight (lbs.)	Shelves
Z-1812/2	25” 17¼” 20¼”	MS SS	9¾” 12½” 9” 7¼” 12½” 10¾”	1096 974	338	NA
Z-1818/2	25” 17¼” 26¼”	MS SS	9¾” 12½” 15” 7¼” 12½” 16¾”	1828 1518	410	NA
Z-2218/2	28” 22¼” 26¼”	MS SS	12½” 17” 15” 7½” 17½” 17½”	3188 2198	568	NA
Z-3018/2	38” 22¼” 26¼”	MS SS	12½” 17” 15” 17½” 17½” 17½”	3188 5130	690	2
Z-3620	45½” 25¾” 26¾”	MS SS	12½” 20¼” 17¼” 23¼” 20½” 18¾”	4366 8937	1035	2
Z-4220	51½” 25¾” 26¾”	MS SS	12½” 20¼” 17¼” 29¼” 20½” 18¾”	4366 11243	1140	3
Z-4820	57½” 25¾” 26¾”	MS SS	12½” 20¼” 17¼” 35¼” 20½” 18¾”	4366 13550	1225	3



Add 2” to outside depth for dial and handle.



PS915





GS-2522





Model	Outside Dimensions H W D	Inside Dimensions H W D	Approx. Weight (lbs.)
PS915	4¼” 9½” 14”	3” 8” 9”	15
GS-2522	25” 22” 16¾”	24½” 21½” 13”	182

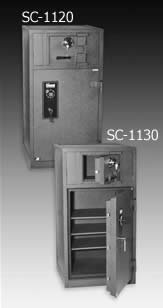

Safe/Chest Combination

Precision construction and design for both fire and burglary protection. Top compartment for storage of money and valuables. Bottom for storage of records.

Standard Features

• Top unit is burglary resistive – TL-15 U.L. Listed.
• Bottom unit is fire resistive – and exceeds requirements for 350°F, 1 hour.
• Finest quality U.L. Listed – Group II combination lock or key-op lock.
• Available with electronic push-button lock.

Standard colors: Gardall gray or sandstone



Model	Outside Dimensions H W D		Inside Dimensions H W D	Cubic Inches	Approx Weight(lbs.)
SC-1120	37” 22¼” 26¼”	Top Bottom	9” 12” 10” 20½” 17½” 18”	1080 6460	970
SC-1130	55½” 25¾” 28¼”	Top Bottom	9” 12” 10” 30½” 20½” 20”	1080 12505	1565



All specifications are subject to change without notice.

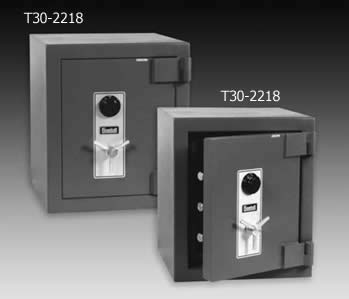

Standard Features:

Door Construction:

• TL15 – 5” slab High Density Fiber Reinforced Material
• TL30 – 5” overall, 3” slab of High Density Fiber Reinforced Barrier Material – TDRII*
• TL30X6 – TL30X6 – 4 1 /2” overall thickness with 2” Defense Barrier

Body Construction:

• TL15 – 3” slab of High Density Barrier Material
• TL30 – 5” slab of High Density Barrier Material
• TL30X6 – 4 1 /2” thick composite Reinforced Manganese steel armor plate

Anti Burglary Components:

• Cross locking relockers.
• Punch resistant spindle handle and lock.
• Tempered glass relocking trigger.
• Bridge mounted lock.
• 1 1 /4” chrome plated locking bolts.

Locks:

• Group II listed combination or electronic locks. Key lock available for dual custody.

Hinges:

• Massive heavy duty adjustable ball bearing hinges.

*TDR II – Special formulation of High Density Barrier Material with Fiber Reinforcement



Model		Outside Dimensions H W D	Inside Dimensions H W D	Cubic Feet	Approx Weight(lbs.)
TL-15	T15 1818	25" 25" 21½"	18" 18" 12"	1.8	930
T15 2218	29" 25" 26"	22" 18" 16½"	3.8	1210	2
T15 3822	45" 29" 29½"	38" 22" 20"	9.7	2095	3
T15 5022	57" 29" 29½"	50" 22" 20"	12.7	2555	4
T15 6222	69" 29" 29½"	62" 22" 20"	15.8	3015	5
TL-30	T30 1818	25" 25" 21½"	18" 18" 12"	1.8	950
T30 2218	29" 25" 26"	22" 18" 16½"	3.8	1230	2
T30 3822	45" 29" 29½"	38" 22" 20"	9.7	2145	3
T30 5022	57" 29" 29½"	50" 22" 20"	12.7	2615	4
T30 6222	69" 29" 29½"	62" 22" 20"	15.8	3090	5
T30 7236	79" 43" 29½"	72" 36" 20"	30	4585	6
TL-30X6	T30X6 1818	25" 25" 21½"	18" 18" 12"	1.8	1105
T30X6 3822	45" 29" 29½"	38" 22" 20"	9.7	2485	3
T30X6 5022	57" 29" 29½"	50" 22" 20"	12.7	3025	4
T30X6 6222	69" 29" 29½"	62" 22" 20"	15.8	3570	5
T30X6 7236	79" 43" 29½"	72" 36" 20"	30	5225	6



Gardall Safe Corporation has been manufacturing premium quality safes for home and office applications since 1950. Our Commercial High Security safes are manufactured to specifications which are more strin-gent than many of our competitors requirements. Some of the standard features on Gardall TL15 and TL30 safes are options with other manufacturers. Please be sure to compare our specifications with those of our competitors before making your decision.

• TL15 – Tool Resistant for 15 minutes
• TL30 – Tool Resistant for 30 minutes
• TL30/6 – Tool Resistant for 30 minutes all six sides of safe.



Licensed by the State of Tennessee - Bonded & Insured - Industrial - Commercial - Residential - Locks - Safes - ADA Compliance - Fire Code Compliance
