Burglary Safes





NEW! CB10
Cash Box with Key Lock
Features three cash compartment tray.Spring clips secure bills to lid. Additional storage compartment and carry handle. Powder-coating finish.

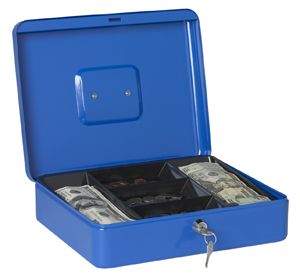

NEW! CB23
Cash Box with Key Lock
Features five cash compartment tray. Spring clips secure bills to lid. Additional storage compartment and carry handle. Powder-coating finish.





NEW! KB20
Key Box with Key Lock
Solid steel construction with powder coating finish. Holds 20 keys with number tags. Mounting hardware included with pre-drilled holes.





NEW! KB93
Key Box with Key Lock
Solid steel construction with powder coating finish. Holds 93 keys with number tags. Mounting hardware included with pre-drilled holes.



Model
No.
Outside
H x W x D*
Wt.
Lbs
NEW! CB10
3-9/16 x 7-7/8 x 6-5/16
2.3
NEW! CB23
3-9/16 x 11-13/16 x 9-7/16
4.6
NEW! KB20
7-7/8 x 6-5/16 x 3-1/8
2.3
NEW! KB93
11-13/16 x 9-7/16 x 3-1/8
6



ES Series







NEW! ES813 / ES1014 / ES916 / ES2014 Features:

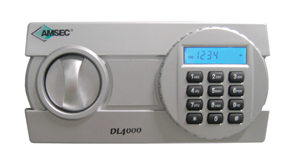

• State-of-the-art electronic lock DL4000
• Combination changes are fast and easy.
• Includes: One (1) emergency key-lock with two (2) keys, bright blue LCD display with a low-battery indicator and a power override battery box.
• Heavy 14 gauge solid steel construction, plus dual live bolts made also of heavy gauge steel.
• Mounting feet and anchor hardware standard. Can be bolted to the wall or floor.
• Carpeted base.
• Models ES1014 and ES2014 have one removable shelf.







NEW! ES412 Drawer/Shelf Safe Features:



Model
No.
Inside
H x W x D
Outside
H x W x D
Clear
Door
Cubic Inch
Capacity
Wt.
Lbs
Interior
Shelves

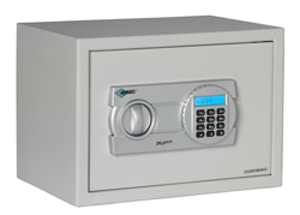

NEW! ES813
7-13/16 x 1-1/16 x 5
8 x 12-1/4 x 7-3/4
5-3/4 x 8
757
16
0
NEW! ES916
8 x 15-3/4 x 10-5/8
9 x 16 x 13-1/8
7-1/8 x 12-7/8
1,354
30
0
NEW! ES1014
9-1/2 x 13-1/2 x 7
9-3/4 x 13-3/4 x 9-3/4
7-3/4 x 9-7/8
1,323
27
1
NEW! ES2014
19-1/2 x 13-1/2 x 9-1/2
19-3/4 x 13-3/4 x 12-1/4
17-5/8 x 11
3,300
47
1





Hotel Safes



Hotel & Residential Electronic Safe.

AMSEC's new hotel and residential electronic safe, with it's easy installation, maintenance, and management features has become a popular safe in the hospitality industry. Designed with the traveling guest in mind, the HR916E will adequately secure laptop computers, cameras, jewelry, and other valuables, in the most user friendly safe made.

Standard Features:

Options:









"B/C" Rate Security Chests





Door:

Body:



Model
No.
Inside
H x W x D
Outside
H x W x D*
Door
Opening
Cubic Inch
Capacity
Wt.
Lbs

Interior
Shelves

“B” Rate
BLB2018
20 x 18 x 12
20-1/2 x 18-1/2 x 15
18 x 16
4,320
200
2
BLB3018
30 x 18 x 16
30-1/2 x 18-1/2 x 19
28 x 16
8,640
300
2
BLB3024
30 x 24 x 20
30-1/2 x 24-1/2 x 23
28 x 22
14,400
360
3
BLB4024
40 x 24 x 20
40-1/2 x 24-1/2 x 23
38 x 22
19,200
445
4
“C” Rate
BLC2018
20 x 18 x 12
21 x 19 x 16
18-1/2 x 16-1/2
4,320
370
2
BLC3018
30 x 18 x 16
31 x 19 x 20
28-1/2 x 16-1/2
8,640
550
2
BLC3024
30 x 24 x 20
31 x 25 x 24
28-1/2 x 22-1/2
14,400
740
3
BLC4024
40 x 24 x 20
41 x 25 x 24
38-1/2 x 22-1/2
19,200
925
4



"B" Rate Security Safes

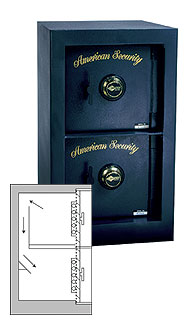

AMSEC's “C” Rate CDS3017 and “B” Rate Money Manager Series undercounter Double Door Depository safes are recommended for any operation that requires a nonreturnable deposit such as armored car companies, convenience stores, restaurants, etc. The secured deposit and receiving compartments protect against mysterious disappearance and pilferage.









Standard Features for BWB and US2015C:



Additional US2015 Features:



Additional BWB Series Features:



Mini Safe (MS Series) Features:





Model
No.
Inside
H x W x D
Outside
H x W x D
Door
Opening
Cubic Inch
Capacity
Wt.
Lbs
Interior
Shelves
BWB2020
19-3/4 x 19-3/4 x 17
20 x 20 x 20
14-3/4 x 16-1/4
6,631
170
1
BWB3020
29-3/4 x 19-3/4 x 17
30 x 20 x 20
24-3/4 x 16-1/4
9,988
270
2
BWB3025
29-3/4 x 24-3/4 x 22
30 x 25 x 25
24-3/4 x 21-1/4
16,198
290
2
BWB4020
39-3/4 x 19-3/4 x 17
40 x 20 x 20
34-3/4 x 16-1/4
13,346
340
3
BWB4025
39-3/4 x 24-3/4 x 22
40 x 25 x 25
34-3/4 x 21-1/4
21,644
390
3
US2015
20 x 15-1/4 x 15
20-1/4 x 15-1/2 x 18
15-5/8 x 10-7/8
4,575
120
2
MS1414
13-3/4 x 13-3/4 x 11
14 x 14 x 14
9-3/4 x 9-3/4
2,080
61
1

* Add 2" to outside depth for handle, dial and hinge projection.





Fire Safes

U.L. Listed 2 Hour Fire and Impact Safes



Click the fireman hat to find about AMSEC's fire rating label





Features:

Optional Extras

Model
No.
Inside
H x W x D
Outside
H x W x D
Door
Opening
Cubic Inch
Capacity
Wt.
Lbs
Interior
Shelves
UL(*)1511
14-3/4 x 11-1/4 x 12
21-1/4 x 17 x 18-1/2
14-3/4 x 11-1/4
2,070
185
1
UL(*)1812
18-1/2 x 12-1/2 x 12
25 x 18 x 18
18-1/2 x 12-1/2
2,775
250
1
UL(*)1812XD
18-1/2 x 12-1/2 x 17
25 x 18 x 23
18-1/2 x 12-1/2
3,931
305
1
UL(*)2018
20 x 18 x 18
30-1/4 x 25-1/2 x 25-1/2
20 x 18
6,480
495
2
UL(*)2818
28 x 18 x 18
38-1/4 x 25-1/2 x 25-1/2
28 x 18
9,072
695
2
UL(*)3918
39 x 18 x 18
49-1/4 x 25-1/2 x 25-1/2
39 x 18
12,636
835
2

(*) Insert ST=Sandstone or GR=Granite finish.
* * Add 2" to outside depth for handle, dial and hinge projection. Outside height includes rubber feet
on models UL1511 – 1812XD and rolling casters on models UL2018 – UL3918.



Imported Fire Safes

U.L. Listed 2 Hour Fire and Impact Safes







NEW! Imported Residential Fire Safes
(Electronic and Combo)

This economical range of Fire Star fire safes is the answer to today's high incidence of residential fires. Fire Star safes also provide burglary protection making them ideal for home and light commercial applications.

(ELECTRONIC)
ES914 / ES149 / ES1814
Features:

  • 350°F 1-Hr U.L. listed fire rating.
  • State-of-the-art DL4000 Electronic Lock. Combinations are fast and easy. Emergency key-lock override system with two (2) keys, bright blue LCD display with a low-battery indicator and a power override battery box.
  • Side boltwork mechanism incorporating two 1/2" steel deadbolts prevents door removal if hinges are removed during a forced entry attempt. (ES1814 model: 1" x 4-1/2" rectangular steel deadbolts).
  • One (1) drawer shelf.
  • Impressive 1/2” thick door with attractive two-toned sage finish. (ES1814 model: 5/8" thickness).
  • Four (4) rubber feet. (ES1814 model has four rolling casters).

(COMBO)
FS712 / FS914 / FS149
Features:

  • 350°F 1-Hr U.L. listed fire rating.
  • One (1) internal anchor hole and hardware, four (4) rubber feet and one (1) drawer shelf (except model FS712 that has a removable shelf).
  • Key-operated side-locking mechanism incorporating two chromed locking bolts.
  • Two deadbolts prevent door removal if hinges are removed during a forced entry attempt.
  • Attractive two-toned sage finish.





NEW! Imported Commercial Fire Safes


These larger models of Imported Fire resistant safes are designed for commercial and residential application for bulky items. The loss of important documents can severely cripple a business. Surveys have shown that 47% of all businesses do not survive after a devastating fire and that these fires strike an average of every 4 minutes.

FS2215 / FS3018 / FS4622
Features:

Model
No.
Inside
H x W x D
Outside
H x W x D
Clear
Door
Cubic Inch
Capacity
Wt.
Lbs
Interior
Shelves
U.L. LISTED FIRE SAFES WITH DL4000 ELECTRONIC LOCK
ES914
8-9/16" x 14-1/4" x 9-3/4"
14" x 19-1/2" x 15-3/8"
8-9/16" x 14-1/4"
1,189
124
1
ES149
14-3/8" x 8-3/4" x 10"
19-1/2" x 14" x 15-5/16"
14-3/8" x 8-3/4"
1,258
126
1
ES1814
14" x 13" x 12-5/8"
23-5/8" x 18-7/8" x 18-1/2"
18 x 13
2,298
246
1 + one key lock drawer
U.L. LISTED FIRE SAFES WITH MECHANICAL LOCK - RESIDENTIAL
FS712
7" x 11-3/4" x 8-1/2"
11-13/16" x 16-5/8" x 13-3/4"
7" x 11-3/4"
699
90
1
FS914
8-9/16" x 14-1/4" x9-3/4"
14" x 19-1/2" x 15-3/8"
8-9/16" x 14-1/4"
1,189
124
1

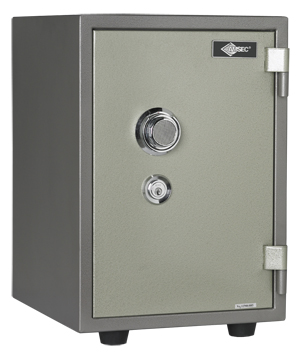

FS149
14-3/8" x 8-3/4" 10"
19-1/2" x 14" x 15-5/16"
14-3/8" x 8-3/4"
1,258
126
1
U.L. LISTED FIRE SAFES WITH MECHANICAL LOCK - COMMERCIAL
FS2215
17-3/4" x 11-5/8" x 13-1/2"
27-9/16" x 19-3/4" x 19-1/4"
17-3/4" x 11-5/8"
2,786
308
2 + one key lock drawer
FS3018
26-1/2" x 15-1/2" x 16-1/2"
36-1/4" x 23-5/8" x 22-1/2"
26-1/2" x 15-1/2"
6,777
503
2 + one key lock drawer
FS4622
40-1/4" x 21-1/4" x 18-3/4"
51-1/4" x 27-11/16" x 25-3/16"
40-1/4" x 21-1/4"
16,037
831
2 + one key lock drawer

*Packaged for UPS shipments.
** Add 2" to outside depth for handle, dial and hinge projection on all models listed above.
Above dimensions have been converted from metric measurements. Please allow +1/4"– -1/4" variation
for both outer and inner dimensions listed.



DXE/DXF, CDXE/CDXF U.L. Listed TL-15 & TL-30 Money Chests





AMSEC TL-15 and TL-30 U.L. listed Money Chests qualify for Mercantile & Broadform Insurance Class ER (TL-15) and F (TL-30) with a bank rating of BR (TL-15) and G (TL-30). AMSEC Money Chests offer the highest level of security available with many outstanding features and a wide range of options.

Features:

Door:

Body:

Locking Mechanism:

Hinges:

     OPTIONS:





High Security Composite Safes

ACF TL-30 Fire Rated Composite Money Chest





AMSEC TL-30 U.L. listed Money Chests qualify for Mercantile & Broadform Insurance Class F with a bank rating of G. AMSEC composite Money Chests offer the highest level of security available for today's market. The composite body and door offer outstanding burglary and fire protection all in one safe.

Features:

Door:

  • 5-1/2" thick door constructed of outer and inner steel plates enclosing a high density proprietary composite material.
  • Two hour, 350°F factory fire rating. Tested at temperatures up to 1850°F.

Body:

  • 3-1/4" thick body constructed of inner and outer steel plates enclosing a high density proprietary composite material.
  • Door and inner jamb surrounded by thick solid steel bars.
  • Adjustable shelves.

Locking Mechanism:

  • U.L. listed Group II key changeable lock, with relock and 1 million possible combinations.
  • Dual auxiliary spring-loaded relocking device, activated by a punching attack.
  • Locks and relocks protected by a large proprietary drill shattering composite hardplate.
  • A handle activated locking mechanism consisting of three to five 1" diameter chromed steel locking bolts.
  • Five boltwork sizes allow AMSEC to build units from 12" to 88" high, widths from 20" to 48".
  • Bolt tensioner keeps locking bolts retracted in the open position.
  • Handle designed to shear in case of forced entry attempt.
  • Solid steel dead bars prevent door removal if hinges are removed during a forced entry attempt.
  • Compact locking mechanism allows for optional door mounted coin racks.

Hinges:

  • Ball bearing hinges fabricated from high strength steel.
  • Precision machined alloy dowel pins.
  • Oil impregnated bronze bearing assures easy opening doors and reduced maintenance.
  • Vertical height adjustment.

Finish:

  • Available in Satin Black, Slate Blue, Parchment or the standard Gray textured finish.

    Model
    No.

    Inside
    H x W x D
    Outside*
    H x W x D
    Door
    Opening
    Cubic Inch
    Capacity
    Wt.
    Lbs.
    Interiors
    Shelves
    ACF2020
    20 x 20 x 20
    26-3/4 x 26-1/2 x 28-3/4
    19 x 18-3/4
    8,000
    1,121
    2
    ACF2020XD
    20 x 20 x 24
    26-3/4 x 26-1/2 x 32-3/4
    19 x 18-3/4
    9,600
    1,235
    2
    ACF3020
    30 x 20 x 20
    36-3/4 x 26-1/2 x 28-3/4
    29 x 18-3/4
    12,000
    1,435
    2
    ACF3020XD
    30 x 20 x 24
    36-3/4 x 26-1/2 x 32-3/4
    29 x 18-3/4
    14,400
    1,572
    2
    ACF4024
    40 x 24 x 20
    46-3/4 x 30-1/2 x 28-3/4
    39 x 22-3/4
    19,200
    1,939
    2
    ACF4024XD
    40 x 24 x 24
    46-3/4 x 30-1/2 x 32-3/4
    39 x 22-3/4
    23,040
    2,105
    2
    ACF5024
    50 x 24 x 20
    56-3/4 x 30-1/2 x 28-3/4
    49 x 22-3/4
    24,000
    2,280
    2
    ACF5024XD
    50 x 24 x 24
    56-3/4 x 30-1/2 x 32-3/4
    49 x 22-3/4
    28,800
    2,468
    2
    ACF6030
    60 x 30 x 20
    66-3/4 x 36-1/2 x 28-3/4
    59 x 28-3/4
    36,000
    2,981
    2
    ACF6030XD
    60 x 30 x 26
    66-3/4 x 36-1/2 x 34-3/4
    59 x 28-3/4
    46,800
    3,320
    2
    ACF4824DS**
    (top)
    26 x 18 x 14
    47-3/4 x 24-1/2 x 25-3/4
    25 x 16-3/4
    6,552
    1,654
    2
    (bottom)
    14 x 18 x 17
    13 x 16-3/4
    4,284
    0

    * Add 2" to outside depth for handle, dial and hinge projection.
    ** DS=Double Door Depository Safe

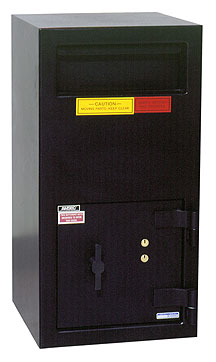

ACF TL-30 Depository Safe

AMSEC's ACF TL-30 double door depository safe offers complete cash management versatility for any operation that requires a nonreturnable deposit such as armored car companies, convenience stores, restaurants, etc. The U.L. listed TL-30 composite construction offers peace of mind when overnight protection is required.

In addition to the outstanding features listed under ACF TL-30 Money Chest, the ACF4824DS Depository safe also offers:

Top Deposit/Storage Compartment

Bottom Receiving Compartment



Options:

  • Electronic locks, Group 1 and 1R locks.
  • Dual combination locks (Receiving compartment only).
  • Spyproof dial, Keylock dial.
  • Modular alarm, Holdup alarm.
  • Interior lockers, Interior drawers, Adjustable shelves.
  • Custom sizes/designs quoted upon request.
  • Access Control Systems.

Finish:

  • Available in Satin Black, Slate Blue, Parchment or the standard Gray textured finish.

Model
No.

Inside
H x W x D
Outside*
H x W x D
Door
Opening
Cubic Inch
Capacity
Wt.
Lbs.
Interiors
Shelves
ACF4824DS**
(top)
26 x 18 x 14
46-3/4 x 24-1/2 x 25-3/4
25 x 16-3/4
6,552
1,619
2
(bottom)
14 x 18 x 17
13 x 16-3/4
4,284
0



* Add 2" to outside depth for handle, dial and hinge projection.
** DS=Double Door Depository Safe

AMVAULT TL-30 and TL-15 Fire Rated Composite Safes





During extreme testing procedures, AMVAULT composite safes demonstrated the ability to withstand severe attacks by experienced U.L. experts using powerful tools such as sledgehammers, power saws, carbide disc cutters, drills, etc., and without fail, were awarded the U.L. TL-15 and TL-30 labels.

Besides withstanding the most concentrated attacks by sophisticated burglars, each AMVAULT safe offers a Two Hour, 350Þ F factory fire test certification, ensuring the protection of the vault's contents against intense fires.

Features:

Door:

  • Overall thickness of 5-3/4" and is construc-ted with a 2-3/4" defense barrier of outer and inner steel plates creating a single structure enclosing a unique, high density fire and burglary resistant composite mat-erial.
  • Defense barrier houses a proprietary amalgamation of nuggets and steel fibers to withstand concentrated attacks with the most sophisticated equipment used by burglars today.
  • The Amvault TL-30 offers a massive solid steel hard plate covering the entire door.

Body:

  • The Amvault formed body has a total protective thickness of 3-1/2" enclosing a high density fire resistant composite material with nuggets and steel fibers.
  • A reinforced drill resistant door frame protects the door and each individual bolt chamber from severe side attacks.
  • A proprietary inner barrier protects against
    peeling attacks.
  • High strength adjustable shelves.

Fire Endurance:

  • Two hour, 350°F factory fire rating. Tested at temperatures up to 1850°F

Locking Mechanism:

  • Equipped with six to ten massive 1-1/2" diameter chrome plated solid steel locking bolts. Each bolt moves deep into the body's protected bolt chambers.
  • Entire boltwork mechanism is also protected by a spring operated boltwork detent system. Bolts stay in the retracted position when the door is opened and automatically engage when the door is closed.
  • Three-Way Boltwork Option (TL-30 Only):
  • Safes can be equipped with a three way active boltwork mechanism engaging the bolts horizontally and vertically into the body of the safe.

Locks:

  • Equipped with a U.L. listed Group II key changeable combination lock. The lock is protected by a massive drill shattering hard plate and two additional spring- loaded devices.

Hinges:

  • Offers a vertical height adjustment and utilizes an oil impregnated bearing ensuring easy door operation.

Optional Auxiliary Key Lock:

  • U.L. listed, high security auxiliary key lock is also available on all AMVAULT safes (except Model 1814). Lock is equipped with 2 keys and escutcheon plate.
  • An additional spring-loaded relock device protecting lock against punch attacks.
    Optional Glass Relocking

Mechanism (TL-30 Only):

  • Incorporated into the AMVAULT TL-30 auxiliary key lock is an optional high security tempered glass relock mechanism with a remotely and randomly placed “cross locking” relocking bolt and thermal cords to protect against torch attacks.
  • In the event of an attack by tools, torches, or explosives, the glass will shatter activating the highly sophisticated relock mechanism.
  • Utilizing the glass relock mechanism can offer up to a total of six different relock devices offering the ultimate in high security protection.



AMVAULT High Security Composite safes have passed Underwriter's Laboratories most recent testing procedures ensuring you today's best protection. AMVAULT TL-15 and TL-30 U.L. listed composite safes qualify for Merchantile & Broadform Insurance Class ER (TL-15) and F (TL-30) with a Bank Rating of BR (TL-15) and G (TL-30). Two Hour Class 350°F manufacturers' fire label.

Standard finish is Parchment. Other colors available on request.

Model Inside Outside Cubic Wt. Lbs Interior/ Door Swing
No. H x W x D H x W x D* Feet TL-15/TL-30 Shelves A B C
(†)1814** 18 x 14 x 12 25 x 21 x 21-1/2 1.8 700 / 710 1 14 36 39-1/2
(†)2518 25 x 18 x 16 32 x 25 x 25-1/2 4.2 1,110 / 1,125 1 18 44 47-1/2
(†)3524 35 x 24 x 20 42 x 31 x 29-1/2 9.7 1,720 / 1,764 2 24 56 57-1/2
(†)4524 45 x 24 x 20 52 x 31 x 29-1/2 12.5 2,060 / 2,100 3 24 56 57-1/2
(†)5524 55 x 24 x 20 62 x 31 x 29-1/2 15.3 2,410 / 2,474 3 24 56 57-1/2
(†)6528 65 x 28 x 20 72 x 35 x 29-1/2 21.1 3,028 / 3,206 4 28 64 61-1/2
(†)7236 72 x 36 x 23 79 x 43 x 32-1/2 34.5 4,000 / 4,270 4 36 80 72-1/2

* Add 2" to outside depth for handle, dial and hinge projection.
** Model 1814 cannot be equipped with an auxiliary lock, 3-way boltwork or glass relock mechanism.
( †) Add CE for TL-15, CF for TL-30.

"B" Rate Rotary and Front Loading Depository Safes





AMSEC's DS series Depository safes are designed to provide immediate deposits and secure storage for cash, jewelry, and miscellaneous valuables. Deposits can be made through a locked door via a top-loading rotary hopper, a reverse hopper, or a front-loading deposit door.



FEATURES:

Body:

  • Strong, formed "B" Rate construction made of A36 solid steel plate for improved security and appearance.
  • Formed door jamb for increased resistance to sledgehammer attack.
  • Four anchor bolt holes are standard.

Door: Model Number 2014 and 2714

  • 1/2" thick A36 solid steel plate, recessed 1/2" to increase resistance to pry attack.
  • U.L. Group II combo lock (C), U.L. listed dual nose keylock (K).
  • Three 1" diameter chromed steel locking bolts.
  • Bolt detent system engages boltwork automatically.
  • Auxiliary spring-loaded relocking device.
  • Lock and relock protected by large carburized hardplate.

(Additional features: Models #3214/2731)

  • 3-way boltwork with 1" x 1/2" rectangular plated bolts.

Hopper:

  • 2014/2714 are available w/ reverse hopper.
  • Large package sizes: (Top Load Rotary):
    4-3/4"D x 4-3/4"W x 10"L
    (Front/Reverse Load): 4"D x 2-3/4"W x 10-1/2"L
  • Recessed, heavy duty 3/16" construction (1/4" door).
  • Protected by dual “anti-fish” baffles.

Additional Features: Wide Body Model (2731)

  • Unique space-efficient, side-by-side design creates full depth depository and large storage compartment.
  • Accepts cash trays up to 13" x 18".
  • Optional coin rack available on storage compartment door.
Model
No.
Inside
H x W x D
Outside
H x W x D*
Door
Opening
Cubic Inch
Capacity
Wt.
Lbs
DST2014
11-1/2 x 13-3/4 x 11
20-1/4 x 14 x 14
9-3/4 x 9-3/4
1,739
98
DSF2014
10 x 13-3/4 x 11
20-1/4 x 14 x 14
9-3/4 x 9-3/4
1,513
94
DSR2014
10 x 13-3/4 x 11
20-1/4 x 14 x 14
9-3/4 x 9-3/4
1,513
94
DSC2014KC**
(bottom) 10-1/4 x 13-3/4 x 11
27-1/4 x 14 x 14
(bottom) 9-3/4 x 9-3/4
1,513
100
(top) 6-7/8 x 13-3/4 x 12-3/8
(top) 6 x 10-3/8
1,127
DST2714
18-1/2 x 13-3/4 x 11
27-1/4 x 14 x 14
9-3/4 x 9-3/4
2,798
116
DSF2714
17-1/4 x 13-3/4 x 11
27-1/4 x 14 x 14
9-3/4 x 9-3/4
2,609
110
DSR2714
17-1/4 x 13-3/4 x 11
27-1/4 x 14 x 14
9-3/4 x 9-3/4
2,609
110
DST3214
(top) 12-1/4 x 13-3/4 x 11
32-1/4 x 14 x 14
9-3/4 x 9-3/4
1,664
152
(bottom) 11-1/4 x 13-3/4 x 11
1,890
DSF3214
(top) 11-1/4 x 13-3/4 x 11
32-1/4 x 14 x 14
9-3/4 x 9-3/4
1,437
144
(bottom) 12-1/2 x 13-3/4 11
9-3/4 x 9-3/4
1,890
DST2731
(left) 18-1/2 x 14-3/8 x 18
27-1/4 x 30-3/4 x 21
(left) 9 x 9-7/8
4,787
285
(right) 27 x 16 x 18
(right) 22-1/2 x 14-3/8
7,776
DSF2731
(left) 16-3/4 x 14-3/8 x 18
27-1/4 x 30-3/4 x 21
(left) 9 x 9-7/8
4,399
276
(right) 27 x 16 x 18
(right) 22-1/2 x 14-3/8
7,776



* Add 2" to outside depth for dial and handle projection.
† Specify Prefix: T=Top loading, F= Front loading, R=Reverse hopper.
Suffix: K=Keylock C=Combo lock.
** K=Camlock

"C" Rated Double Door and Money Manager Depository Safes



AMSEC's “C” Rate CDS3017 and “B” Rate Money Manager Series undercounter Double Door Depository safes are recommended for any operation that requires a nonreturnable deposit such as armored car companies, con-venience stores, restaurants, etc. The secured deposit and receiving compartments protect against mysterious disappearance and pilferage.

Standard Features: CDS3017

Money Manager MM2820 Features:

Model
No.
Inside
H x W x D
Outside
H x W x D*
Door
Opening
Cubic Inch
Capacity
Wt.
Lbs
CDS3017
(top) 11-7/8 x 13-1/4 x 12-1/8
30 x 17-1/2 x 19
10-3/4 x 11-1/8
1,908
590
(bottom) 11-7/8 x 13-1/4 x 12-1/8
1,908
MM2820
(top) 9-1/2 x 20 x 17
28 x 20-1/2 x 20
8-1/2 x 16
3,230
280
3-Drop
(bottom) 11 x 20 x 17
3,740
MM2820
(top) 9-1/2 x 20 x 17
28 x 20-1/2 x 20
8-1/2 x 16
3,230
280
Top-Drop
(bottom) 11 x 20 x 17
3,740
MM2820
(top) 10-3/8 x 20 x 17
28 x 20-1/2 x 20
8-1/2 x 16
3,230
280
Ctr-Drop
(bottom) 10-3/8 x 20 x 17
3,740

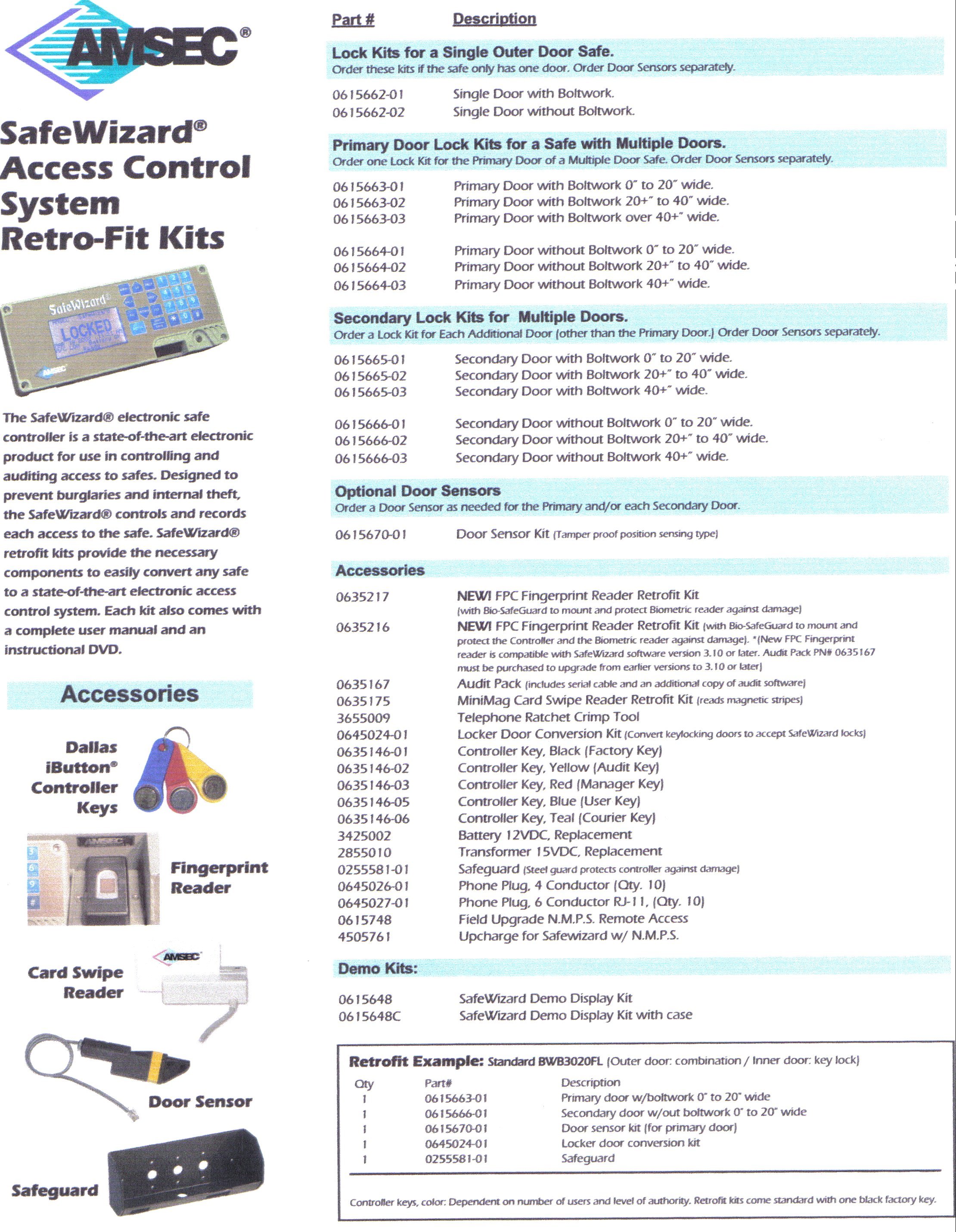

The SafeWizard ® Depository Safes

The SafeWizard® electronic safe controller is a state-of-the-art electronic product for use in controlling and auditing access to safes. Designed to prevent burglaries and internal theft, the SafeWizard® controls and documents each access to the safe. Based on contemporary high speed processors, unique user friendly software techniques and ingenious application ideas, this system surpasses all other safe access control systems.



BSW Standard Features:

Door:

Interior Features:

The SafeWizard® Features:

Model
No.
Inside
H x W x D
Outside
H x W x D
Door
Opening
Cubic Inch
Capacity
Wt.
Lbs
Interior
Shelves
BSW2020
Locker: 6-1/8 x 19-3/4 x 13-1/2
20 x 20 x 20
14-3/4 x 16-1/4
6,631
170
1
Storage: 9-1/8 x 19-3/4 x 17
BSW3020
Locker: 6-1/8 x 19-3/4 x 13-1/2
32 x 20 x 20
24-3/4 x 16-1/4
9,988
270
2
Storage: 19-1/8 x 19-3/4 x 17
BSW4020
Locker: 6-1/8 x 19-3/4 x 13-1/2
42 x 20 x 20
34-3/4 x 16-1/4
13,346
340
3
Storage: 29-1/8 x 19-3/4 x 17
BSW2025
Locker: 6-1/8 x 24-3/4 x 18-1/2
22 x 25 x 25
14-3/4 x 21-1/4
10,753
250
1
Storage: 9-1/8 x 24-3/4 x 22
BSW3025
Locker: 6-1/8 x 24-3/4 x 18-1/2
32 x 25 x 25
24-3/4 x 21-1/4
16,198
290
2
Storage: 19 x 24-3/4 x 22
BSW4025
Locker: 6-1/8 x 24-3/4 x 18-1/2
42 x 25 x 25
34-3/4 x 21-1/4
21,644
390
3
Storage: 29-1/8 x 24-3/4 x 22



Floor Safes

STAR ® Round Lift Out Door Floor Safes

STAR Floor safes are engineered with advanced security features. STAR Tube safes have been the standard for gas stations, fast food, small retail establishments and home owners for over 50 years.

Low cost, combined with the various body styles and optional doors will fit almost any cash handling system. When properly installed in concrete,
STAR Floor safes provide maximum fire and burglary protection. Now, with the water resistant dust cover, you get protection from water as well.



“C” Rate Lift-Out Door Features:

  • Manipulation resistant, unitized U.L. Group II key changeable lock protected by a revolving carburized hardplate.
  • Removable dial and drive/drill resistant spindle preventing damage from burglary attack and additional protection from hold-up.
  • Door, 7-1/4" clear opening, is 1-3/4" solid steel.
  • Door is securely locked by three bolts each requiring over 25,000 pounds to shear.
  • Each locking bolt has its own hardened steel positive relocking bolt.
  • Body — Heavy “B” rate construction.

Other Features:

  • Water resistant, high impact molded dust cover with rubber “O”-ring seal does not rattle or slide like most covers.
  • STAR's double compartment models provide the commercial user with the most effective cash handling system available. Hold-up as well as burglary protection is greatly enhanced by use of this type of safe. Available with dual key inner compartment. Manager holds one key, the armored car driver, or employee holds the second.

STAR ® Rectangular Body Round Lift Out Door Floor Safes

STAR Rectangular Body, round lift-out door “B” rate floor safes offer a large cubic inch capacity at a reasonable price. Strong, continuously welded steel bodies are offered with our standard “C” rate lift-out combination door and a water resistant dust cover.

Model
No.
Inside
Diameter x H
Outside
Diameter x H
Door
Opening
Cubic Inch
Capacity
Wt.
Lbs
Tubular Body Safes
C3
8-1/4 x 5-3/4
8-3/4 x 9
7-1/4 Dia.
280
40
C5
8-1/4 x 10
8-3/4 x 13-1/2
7-1/4 Dia.
510
46
C7
8-1/4 x 16
8-3/4 x 19
7-1/4 Dia.
785
55
CD5*
(top)
8-1/4 x 4-1/4
8-3/4 x 13-1/2
7-1/4 Dia.
225
54
(bottom)
8-1/4 x 4-1/2
6-3/8 Dia.
240
CD7*
(top)
8-1/4 x 5-1/2
8-3/4 x 19
7-1/4 Dia.
175
66
(bottom)
8-1/4 x 9
6-3/8 Dia.
480
“C” Rate Rectangular Body Safes
B6
12 x 10 x 5-1/4
12-1/2 x 11-1/4 x 9-3/4
7-1/4 Dia.
630
62
B17
12 x 12-1/2 x 10
13 x 13 x 15
7-1/4 Dia.
1,500
98
B24
12 x 12-1/2 x 14-1/2
13 x 13 x 19
7-1/4 Dia.
2,175
122
BD24**
(top)
12 x 12-1/2 x 5-1/2
13 x 13 x 20
7-1/4 Dia.
825
130
(bottom)
12 x 12-1/2 x 10
6-3/8 Dia.
1,500
BDP24**
(top)
12 x 12-1/2 x 4-1/4
13 x 13 x 22
7-1/4 Dia.
638
142
(bottom)
12 x 12-1/2 x 13-3/4
6-3/8 Dia.
2,063



*Double compartment, slotted inner door.
**Double compartment, solid inner door with outside drop chute.

MAJOR ® Round Lift Out Door Floor Safes



MAJOR® Tubular Body, Round Lift-out Door Floor safes provide excellent fire and burglary protection when properly installed in concrete.



“C” Rate lift-out door Features:

  • Unitized U.L. Group II key changeable lock with randomized opening positions defends against drill attacks.
  • Drive resistant dial and spindle blocks sledgehammer attacks.
  • Door, 6-5/8" clear opening, is 1" thick solid steel.
  • Door is securely closed by three 5/8" drive resistant locking bolts.
  • A positive relocking device jams locking mechanism in the event of a forced entry attempt.
    • Recessed locking mechanism protected by a large carburized hardplate.
  • Heavy duty “B” rate solid steel body with reinforced door jamb.
  • Available in double compartment models (DD) with a key locking inner door.
  • Inside slot to bottom compartment on all (DD) models.
Model
No.
Inside
Diameter x H
Outside
Diameter x H
Door
Opening
Cubic Inch
Capacity
Wt.
Lbs
T425
8-1/4 x 5-3/4
8-5/8 x 8-3/4
6-5/8 Dia.
307
40
T625
8-1/4 x 10-1/4
8-5/8 x 13-1/4
6-5/8 Dia.
545
46
T925
8-1/4 x 15-3/4
8-5/8 x 18-3/4
6-5/8 Dia.
840
54
T625DD*
(top)
8-1/4 x 4-1/2
8-5/8 x 13-1/4
6-5/8 Dia.
241
54
(bottom)
8-1/4 x 5-1/4
6-3/8 Dia.
285
T925DD*
(top)
8-1/4 x 7-1/2
8-5/8 x 18-3/4
6-5/8 Dia.
401
64
(bottom)
8-1/4 x 7-3/4
6-3/8 Dia.
420

*Double compartment, slotted inner door.
**Double compartment, solid inner door with outside drop chute.

Brute & Super Brute Series Floor Safes



All BRUTE Series safes are designed to provide secure storage for documents, jewelry, precious metals and miscellaneous valuables at an economical price. When properly installed in a concrete floor, BRUTE Series safes provide excellent fire and burglary protection. BRUTE floor safes meet and exceed the requirements of the Insurance Offices Manual of Burglary Insurance.

You may also add many options to customize your safe, such as: a drop slot in the door, depository chute, digital keypad lock and keylocking dial to name a few. BRUTE Series safes may be installed in the floor, wall, cladding, or within a larger safe

SUPER BRUTE & BRUTE

Standard Features:

  • Black textured body and door.
  • Large brass plated dial and black matte finish dial ring with matching handle.
  • 3M Lexan escutcheon plate covers the entire door surface.
  • End user can get combination changes by just bringing the door to a locksmith.
  • Attractive robotically welded design offers strong reliable welds to protect against burglary attacks and reduce possible leakage.
  • U.L. listed Group II key changeable lock, with relock and 1 million possible combinations.
  • An additional spring loaded relocking device, activated by a punching attack.
  • Lock and relocks are protected by a large carburized hardplate.
  • A handle activated locking mechanism consisting of five 3/4" diameter locking bolts. Each one is drive resistant, chromed steel with a long throw.
  • One piece heavy duty dead bar behind hinge prevents removal of door even if hinges are removed during a forced entry attempt.
  • Door is designed to fit full body size, which greatly reduces any possible pry points.
  • Doors are interchangeable within product group.

Body:

  • Oversize floor plate ensures strong install-ation in concrete.
  • Flush cover plate.
  • Solid steel hinge mechanism using 3/8" diameter steel hinge pins and internal mounting bolts.

SUPER BRUTE

Additional Features:

  • The SUPER BRUTE's new door jamb design is manufactured with state-of-the-art equipment, with built-in devices offering the ultimate protection against sledgehammer attack.
  • “B+” rate door: 3/4" solid steel plate door is standard.
  • Doors are removable and interchangeable.
  • A large, convenient 10-3/4" x 11-1/8" door opening for bulky items.
  • One sliding shelf with double wide model (B3700). Two sliding shelves with triple wide models (B5800).
  • Attractive carpeted floor in every unit.

BRUTE Series

Additional Features:

  • A large, convenient 11-3/4" x 16" door opening, for large bulky items or cash tray storage.
  • B rate door: 1/2” solid steel plate door.
Model
SUPER BRUTE
Inside
H x W x D
Outside
H x W x D
Door
Opening
Cubic Inch
Capacity
Wt.
Lbs
B1500
11-7/8 x 13-1/4 x 8-3/4
12-3/4 x 14-1/8 x 11-3/4
10-3/4 x 11-1/8
1,377
100
B2200
11-7/8 x 13-1/4 x 14
12-3/4 x 14-1/8 x 17
10-3/4 x 11-1/8
2,203
120
B2900
11-7/8 x 13-1/4 x 18-1/4
12-3/4 x 14-1/8 x 21-3/8
10-3/4 x 11-1/8
2,872
130
B3800
12-5/8 x 18 x 17
12-3/4 x 18-3/4 x 21-3/8
10-3/4 x 11-1/8
3,864
136
B2900D*
(top)
11-7/8 x 13-1/4 x 9
12-3/4 x 14-1/8 x 21-3/8
10-3/4 x 11-1/8
1,416
138
(bottom)
11-7/8 x 13-1/4 x 8-1/4
6-3/8 Dia.
1,298
B3700
11-3/4 X 23 X 14
12-3/4 X 24 X 16-3/4
10-3/4 X 11-1/8
3,784
142
B5800
11-3/4 x 35 x 14
12-3/4 x 36 x 16-3/4
10-3/4 x 11-1/8
5,758
182
BRUTE
B1806
12-1/4 x 18-1/2 x 6
13-1/4 x 19-1/2 x 9
11-3/4 x 16
1,360
102
B1810
12-1/3 x 18-1/2 x 10
13-1/4 x 19-1/2 x 13
11-3/4 x 16
2,281
116
B1816
12-1/4 x 18-1/2 x 16
13-1/4 x 19-1/2 x 19
11-3/4 x 16
3,626
142
B1816D*
(top)
12-1/4 x 18-1/2 x 5-3/4
13-1/4 x 19-1/2 x 19
11-3/4 x 16
1,303
152
(bottom)
12-1/4 x 18-1/2 x 10
6-3/8 Dia.
2,266
* Double compartment - slotted inner door.

Mini-Brute - Square Body, Lift-Out Door and Floor Safe



All BRUTE Series safes are designed to provide secure storage for documents, jewelry, precious metals and miscellaneous valuables at an economical price. When properly installed in a concrete floor, BRUTE Series safes provide excellent fire and burglary protection. BRUTE floor safes meet and exceed the requirements of the Insurance Offices Manual of Burglary Insurance.

You may also add many options to customize your safe, such as: a drop slot in the door, depository chute, digital keypad lock and keylocking dial to name a few. BRUTE Series safes may be installed in the floor, wall, cladding, or within a larger safe

Door:

  • Black textured body and door.
  • Large brass plated dial and black matte finish dial ring.
  • 1/2" A36 solid steel plate. New steel guards protect lock and relock from accidental damage.
  • U.L. listed Group II lock with relock. An additional relocking device, activated by punching attack.
  • Heavy duty dead bar behind the hinge prevents removal of door even if the hinges are removed during forced entry attempt.
  • Convenient, reversible lift-out door with a heavy duty handle.
  • Optional baffled drop slot in door.
    Body:
    • One piece 8" square tubular “B” Rate construction.
  • Universal jamb design allows the door to be positioned in all four directions.
    • Continuous welded collar for added protection against pry attacks.
  • A flush cover plate for total concealment under a carpet.

Wall Safes



AMSEC Wall safes are designed to provide hidden protection for documents and miscellaneous valuables. Each wall safe is also designed for easy installation between 16 o/c wall studs with pre-drilled anchor holes and a built-in flange eliminating unnecessary replastering.

Heavy-Duty WS1214 Features:

  • 3/4" thick solid steel door, recessed for flush mounting.
  • Heavy-duty “B” rate fully welded body construction.
  • U.L. Group II combination lock with internal relock device (electronic lock optional)
  • An additional spring loaded relocking device, activated by a punch attack.
  • Locks and relocks protected by a large carburized hardplate.
  • A handle activated locking mechanism consisting of five 3/4" diameter chrome steel locking bolts.
  • One piece heavy-duty dead bar.
  • Two removable shelves.
  • Extra deep interior.
  • Attractive black finish with brass plated dial and gold emblem.

WS1014/WS1514 Features:

  • U.L. listed Group II key changeable lock, with relock and 1 million possible combinations
  • Electronic lock optional, or Chicago single key camlock with 2 keys.
  • Flat dial allows flush mounted installation.
  • WS1014: 3/16" thick solid steel door with dead bar.
  • Continuous non-removable hinge.

WES2114 Features:

  • Offering excellent burglary protection with a heavy duty steel body, 3/16” solid steel door and flange.
  • Extra spacious interior, while still offering the convenience of fitting between studs.
  • Easy to use DL4000 push button electronic lock offers solid protection with the accessibility of quick entry and easy-change combo.
  • Standard key override, in case of lost combination.
  • Dual live bolts ensure protection against pry attacks.
  • Two removable shelves.
  • Cream colored, durable powder coated finish.
  • Packaged for UPS shipment.

WFS149 Features:

  • 1 hour fire rating, insuring the inside temperature never exceeded 350° (paper chars at 450°)
  • Extra deep interior, with one (1) convenient drawer shelf.
  • Group 2 combination lock with knob operated locking mechanism.
  • Each safe is equipped with side locking boltwork mechanism incorporating 1/2” steel deadbolts.
  • Impressive 1/2” thick door with attractive two-tone Sage finish.

WES149
(with Electronic Lock) Features:

  • Same outstanding features of the WFS149 and comes equipped with our easy to operate DL4000 electronic lock.
  • Electronic lock offers high tech design with a 6 digit, easy change electronic keypad.

WS1814 Features:

  • Solid steel construction with a 3/16" pry-resistant door offers excellent burglary protection
  • Equipped with AMSEC's 5BE electronic push button lock. Fast and easy to use.
  • Built-in enhanced LED interior lighting is activated when door is opened.
  • Desktop door design provides a convenient workstation.
  • Comes standard with two storage shelves or one shelf with hanging file rack.
  • An Open Door Signaling feature provides an output signal whenever the door is in the open position, so that an Alarm System can notify the user or a monitoring service that the safe is unlocked.
  • A Silent Signal Alarm feature allows the user to secretly signal a monitoring service that an intruder is in the home.



Model
No.
Inside
H x W x D
Outside
H x W x D
Door
Opening
Cubic Inch
Capacity
Wt.
Lbs
Interior
Shelves
WS1014**
10 x 13-3/4 x 3-1/2
12-1/4 x 15-3/4 x 4
9-5/8 x 12-3/4
481
22
1
WS1514**
15 x 14 x 3-1/2
16-1/2 x 15-1/2 x 4
14 x 13-1/4
688
26
2
WS1214
12 x 13-1/2 x 5-1/2
12-5/8 x 14-1/8 x 10
10-3/4 x 11-1/8
891
86
2
NEW! WES2114
20-5/8 x 13-3/4 x 2-7/8
22-1/8 x 15-1/8 x 4
19-3/16 x 11-3/8
733
36
2
NEW! WFS149*
14-3/8 x 8-3/4 x 10
19-1/2 x 14 x 15-5/16
14-3/8 x 8-3/4
1,258
146
1 drawer shelf
NEW! WES149*
14-3/8 x 8-3/4 x 10
19-1/2 x 14 x 15-5/16
14-3/8 x 8-3/4
1,258
146
1 drawer shelf
WS1814
(2X4 Inst.)
15-3/8 X 13-11/16 X 3-5/8
18-7/8 X 14 X 4
15 X 13-1/4
651
32
2
WS1814
(2x6 Inst.)
15-3/8 X 13-11/16 X 3-5/8
18-7/8 X 14 X 6
15 X 13-1/4
1184
32
2

* 350°F, one hour fire rated wall safe.
** Specify suffiix - K = camlock

Undercounter Safes




AMSEC's Undercounter safes limit excess cash register funds by providing instant protection for interim deposits of cash or checks via the anti-fish deposit slot. Securely positioning the safe next to the cash register limits exposed cash and reduces the threat of robbery and internal theft.

Adaptable for multi-unit installation use, ideal for gun control, staff use, athletic clubs, security areas and much more.

Features:

  • Heavy gauge solid steel construction.
  • Full width deposit slot over door equipped with an “anti-fish” saw tooth baffle to guard against pilferage or fishing.
  • Heavy-duty piano hinges.
  • Available in three models with eight different lock options to fit your specialized security requirements.
  • Units can be bolted together utilizing bolt holes.
  • Interchangeable doors allow flexible means of changing locking mechanisms without replacing the entire unit.
  • Two anchor holes provided on all four sides.
  • Attractive and durable powder coated black finish.

Lock Options:

  • Chicago single key camlock equipped with two keys. (Lock option #1)
  • Chicago 7 pin radial key camlock, equipped with 2 keys. (Lock option #1-T)
  • Medeco® U.L. listed high security single key camlock supplied with two keys. Medeco's restricted keyways protect against unauthorized key duplication. (Lock option #2)
  • S&G single key safe deposit lock supplied with two keys. (Lock option #3)
  • Dual custody safe deposit key lock (two keys required to open safe). (Lock option #4)
  • Best removable core key lock supplied with two opening keys and one control key. (Lock option #5). A removable core system lets you change the combination of any lock in seconds and can easily expand to include new facilities. Can be supplied with or without core. (Lock option #7, without core).
  • S&G Group II key changeable combination lock offers 1 million possible combinations. (Lock option #6).
  • Dual Medeco® U.L. listed high security single key camlocks offer dual custody type operation. Supplied with two keys per lock. (not shown).(Lock option #8).
  • Optional custom key control systems designed to your security requirements:
    1. Master Keyed
    2. Keyed Alike
    3. Keyed Different

Options:

  • Deposit envelopes

Heavy Duty Series Model K1 and K2:

  • 1/4" thick A36 solid steel plate hinged door.
  • Full width slot over door.
  • A saw tooth baffle guards against pilferage or fishing.
  • Your choice of U.L. listed dual control keylock (K-2), a single key Medeco® lock (K-1), or a Chicago single key lock (K-1A).
  • “B” Rate steel construction.
  • May be installed vertically or horizontally.
  • May be mounted on or under counter as space permits.
  • Durable, impact resistant Charcoal Gray textured finish.
Model
No.
Inside
H x W x D
Outside
H x W x D
Door
Opening
Cubic Inch
Capacity
Wt.
Lbs
TB0610(*)
5-7/8 x 5-7/8 x 8-3/8
6 x 6 x 10
5-7/8 x 5
289
6
TB0612(*)
5-7/8 x 5-7/8 x 10-3/8
6 x 6 x 12
5-7/8 x 5
359
8
TB1210(*)
11-7/8 x 5-7/8 x 8-3/8
12 x 6 x 10
5-7/8 x 5
585
15
K1/K2
5-5/8 x 5-5/8 x 10
6 x 6 x 12
3-13/16 x 5
316
19/21

(*) Insert number 1 through 8 to specify lock option.



Bank Equipment Teller Lockers



Features:

Body:

  • 16"H x 32-5/8"W x 24"D, 1/4" solid steel construction.

Door:

  • 1/4" solid steel, hinged from center, divider.

Hinge:

  • Solid steel continuous hinge.

Color:

  • Available in Gray, Slate Blue, Tan, Velvet Beige or standard Charcoal Gray textured finish.

Locks:

  • U.L. listed double nose and single nose safe deposit locks or Medeco® camlocks standard. Combination locks optional extra.

Custom Safes



AMSEC specializes in manufacturing custom safes for supermarkets, banks, restaurants, convenience stores, gas stations, hotels, mini-marts and other businesses. With over 50 years experience building custom safes, AMSEC has the knowledge and expertise to design a safe to meet your cash handling requirements. Our engineering department is equipped with the latest in computer-aided design (CAD) systems for rapid creation of detailed sales sketches, concept drawings, final product prints and design modifications to help you visualize how the safe will look and function. Custom safes are available in every insurance classification from “B” Rate to U.L. listed TL-30 models.

Most Custom Safes can be ordered in any of the following textured colors:

  • Parchment
  • Romanesque Gray
  • Gray
  • Blue Gray
  • Satin Black
  • Charcoal Gray
  • Granite
  • Sandstone

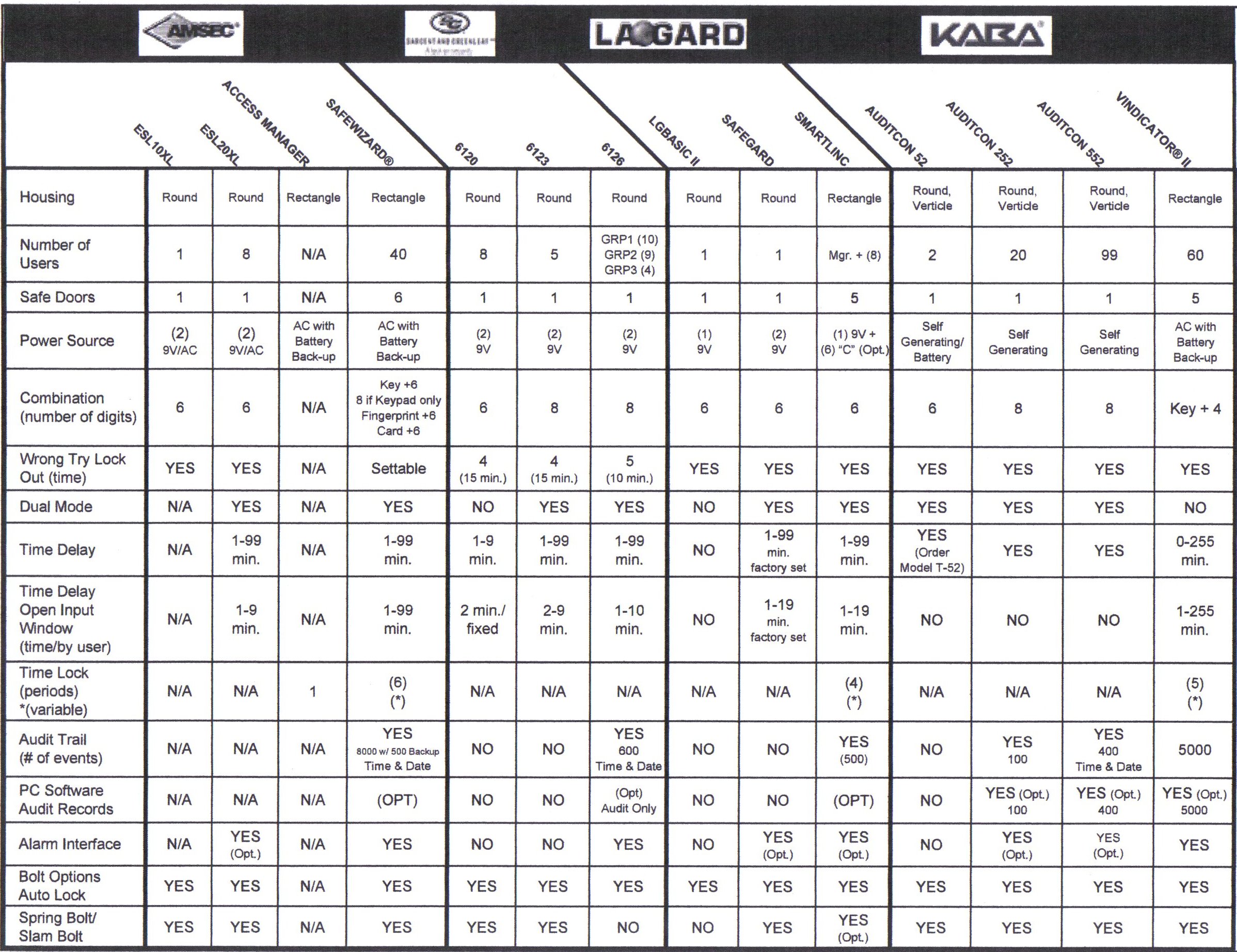

Electronic Locks

ESL Series Electronic Safe Locks (ESLXL)

ESL SERIES:
AMSEC has been a pioneer in the electronic lock market. The ESLXL series locks offer unrivaled value in electronic safe access. The ESL10XL and ESL20XL locks have the best blend of features and function in Electronic Safe Locks. The ESL10XL is a basic keypad lock for home and office applications. The ESL20XL offers advanced features necessary for commercial applications.
The ESLXL Series offers an attractive metal die-cast keypad housing with an alpha-numeric slanted keypad and an enhanced battery retention compartment. The ESL10XL is available in polished brass, polished chrome or matte black finish. The ESL20XL comes standard with a matte black finish.

ESL10XL

Features:

  • Replaces most mechanical combination locks. Easy installation and operation.
  • Combination changes are fast and easy from the keypad.
  • Two 9V-DC batteries in the keypad housing can be changed easily.
  • Electronics are encapsulated within the lock and are sealed to prevent possible moisture related failures.
  • Cable fits through a 1/2" spindle hole without cutting and re-crimping connector.
  • Audible beep and flash from every keystroke gives maximum feedback to the user.
  • New industrial “Soft Touch” membrane keypad is tough yet requires very low activation pressure.
  • 15 minute Penalty Lockout after four incorrect entries protects against manipulation attempts.
  • New patented dead-latched lock design with an internal relock device for maximum security.
  • Lock “auto-locks” when boltwork is thrown to prevent safes from being left in a day lock position.
  • Optional internal battery pack extends operation between battery changes.
  • Slam bolt version for locker applications.
  • Factory reset combination for solving lost combinations.
  • Optional AC Power transformer

ESL20XL

Additional Features:



  • Time Delay Mode: Delays can be set from 1 to 99 minutes. Open period can be set from 1 to 9 minutes.
  • Multiple User Mode: When enabled, one Master code and eight user codes are available with full supervisory control and code management.
  • Dual Control Mode: When enabled, the lock requires two combinations to open for added security.
  • Armored Car Override: When enabled, allows an armored car service to bypass Time Delay.
  • External A/C Power: Provides power for unlimited use with battery power as backup.
  • Control Port: Turn the ESLXL20 on/off with an Access Manager, Alarm System or
    other device.
    Optional Expansion Modules:
    Provides these additional capabilities on the ESLXL20:
  • Duress (Silent Signal) Alarm Output. Provides relay output for alarm system connection.
  • External connection for A/C power transformer on ESLXL20 and ESLXL10.
  • External connection for control port.
  • Provides for connection of one or two ESLXL20 locks.

All the ESLXL20 features are programmed from the keypad. The Expansion Modules provide convenient screw term-inal and slip spade connections for field wiring by the installer.

A/C Power can be connected to the ESLXL20 and ESLXL10 lock (with the ESLAC kit) or an Expansion Module (with the ESLTFMR kit). Wiring, conduit and attachment hardware is provided with all optional kits.



Model
Description
Finish
Primary Lock
Part No.*
Aux. Lock
Part No.**
Retrofit Kit
Part No.
ESL10XL
ESL10XL Standard Lock
Brass
4505763
4505763A
0615770
ESL10XL
ESL10XL Standard Lock
Chrome
4505764
4505764A
0615772
ESL10XL
ESL10XL Standard Lock
Black
4505765
4505765A
0615779
ESL10XL-S
ESL10XL w/ Slam Bolt
Black
4505771
4505771A
0615795
ESL20XL
ESL20XL Standard Lock
Black
4505768
4505768A
0615786
ESL20XL-S
ESL20XL w/ Slam Bolt
Black
4505774
4505774A
0615801
ESLBAT
Auxiliary Battery Pack for ESL10XL or ESL20XL
4505321
0615230
ESL20EXP1
Expansion Module Kit for 1 ESL20XL Lock
4505322
0615231
ESL20EXP2
Expansion Module Kit for 2 ESL20XL Locks
4505323
0615232
ESLAC
A/C Power Kit for use with any ESL10XL or ESL20XL
4505324
0615233
ESLTFMR
A/C Transformer for use with ESL20XLEXP1/2.
4505325
0635080



AMSEC Access Manager Electronic Time Lock Control Device



The Access Manager® is not a lock by itself, but an electronic time lock control device. When controlling the ESL-20 electronic lock, it allows the user the capability of setting the system to their specific needs. The Access Manager® will control one or two electronic locks. One lock operation allows four open time periods during a 24 hour period. If two locks are to be controlled, user may program two open time periods per lock, during a 24 hour period.

Easy Installation / Operation

  • Eight conductor phone communication.
  • All mounting hardware and cable included for normal installation.
  • Retrofittable to the AMSEC/Major Defender Time Delay Lock.
  • Works with most electronic locks.
  • Easy to read illuminated display.
  • 24 hour clock, military format.
  • Alarm clock style programming.
    Security
  • Internal key control for programming.

Multiple Power Sources
Keeping in mind every possible situation the commercial environment can demand, AMSEC has made several different power sources standard.

  • AC wall mount transformer.
  • 4 AA battery back-up.
  • On board Ni-Cad battery backup
  • Auxiliary emergency power port on display board

AMSEC SafeWizard

The SafeWizard® electronic safe controller is a state-of-the-art electronic product for use in controlling and auditing access to safes. Designed to prevent burglaries and internal theft, the SafeWizard® controls and documents each access to the safe. Based on contemporary high speed processors, unique user friendly software techniques and ingenious application ideas, this system surpasses all other safe access control systems.



The SafeWizard® Features:

  • A powerful system based on the ColdFire® 32 bit microprocessor from the Motorola DigitalDNA®.family of embedded development platforms.
  • Flash Memory for quick software upgrades via a laptop computer.
  • Over 8,000 audit entries and 40 users.


Access Control Features:

  • Time Delay any door with a 1-99 minute delay and 1-99 minute open period with cancel feature.
  • Time Lock any door, 1-6 windows per day.
  • Time Lock any door on the fly for a selectable duration.
  • Wrong Try Count Penalty Lockout, user selectable settings.
  • Armored Car courier Time Delay and Lock Bypass.
  • Duress/Hold-up Alarm with Silent Signal output, +/- on last PIN digit.
  • Dual Control Mode on any individual door, selectable by user.
  • Built-in key maker, complete with management tool set, audit trail sorting by several criteria.
  • Ultra-high contrast 8 x 20 graphics display with backlighting feature with 8 lines and high visability fonts for easy reading at a distance.
  • Rechargeable Battery Backup with A/C power, PIN code and/or Dallas Key access control.
  • Redundant audit and configuration database controls up to 6 safe doors.
  • Built-in Infra-Red Port for audits to palmtops.
  • Superb navigation features. Breeze through menus that are intuitive and easy to understand.
  • Built-in System Diagnostics with test modes.
  • Parallel Printer Interface provided in the Power Supply Module connects directly to any conventional parallel printer.
  • Tamper-proof door, boltwork and deposit sensors.
  • Easy wiring with RJ11 six conductor phone style cabling.
  • Device communication is completely secure with VaultLAN® RS485 local area network communications system.
  • AES 128 Bit Data Encryption



AUDITCON® Lock Series

  Featuring   Technology: Use of an internal generator creates all the necessary power. No batteries or external power is required.

The Model 50 Series:

  • Stand-alone, single combination access control.
  • Dual Mode (2-user) function that provides a small business or individual with the convenience of electronic locking.
  • Model D50 meets all specifications of the Model 50, plus is fitted with a time delay feature.

The Model 100 Series:

  • Offers advantages of basic electronic locking.
  • Programmable keypad with resetable combinations.
  • Time Delay.
  • Multi-user access control with audit capability.

The Model 200 and 400 Series:

  • Easily replace traditional mechanical Group I and Group II locks.
  • Upgrades the security of any safe or archive storage unit.
  • Perfect for security applications where shared access and audit capability are necessary.

The Model 2100 Series:

  • Designed with basic operational programs and a variety of programming options.
  • Can be used as a stand-alone lock, or when used with it's proprietary PC software, as a sophisticated electronic security system.
  • Retrofittable, can be used to replace obsolete mechanical dial locks to restore integrity of a safe.



LGBasic Electronic Lock

Visit the LaGard Website
for more information

See AMSEC's
Electronic Lock
Comparison Chart

Standard Features:

  • Manager Mode.
  • Wrong Try Penalty.
  • Outside Battery Compartment (Located under input housing).
  • Uses one (1) user-supplied 9V Alkaline Battery.
  • Satin-Chrome Angular Input Housing
    (Brass Optional).
  • U.L. Listed.
  • Made in USA.

Part # 3715 Angular Round Entry
Part # 3765 Dual-Handed Swing-Bolt



SafeGard Digital Combination Lock

Visit the LaGard Website
for more information

See AMSEC's
Electronic Lock
Comparison Chart

Standard Features:

  • Direct Replacement - Most Mechanical Combination Locks.
  • Wrong Try Penalty.
  • Optional Features: Programmable at any time by Authorized Service .
  • Uses user-supplied 9V Alkaline Batteries.
  • U.L. Listed.
  • Made in USA.

    Programmable Features:
    (with Optional Hand-Held Programmer)

    • Second user.
    • Time Delay
      • Delay Period: 1-99 minutes
      • Open Period: 1-19 minutes
    • Time Delay override.
    • Dual Combination.
    • Silent Signal Alarm
      • Optional box required
    • Remote Override Signal
      • Optional Alarm box required
    • Part # 4100 Swingbolt Lock



SmartGard Serial Access Control

Visit the LaGard Website
for more information

See AMSEC's
Electronic Lock
Comparison Chart

Standard Features:

  • Wrong Try Penalty.
  • Signal to Disable Lock
    • Optional Alarm/Battery Box Required
  • System Status and Audit Trail shown on LCD or optional printer.
  • External Emergency Power Terminals.
  • Battery Box contains six user-supplied C-Cell Alkaline Batteries.
  • U.L. Listed.
  • Made in USA.

    Programmable Features:

    • Manager Mode
    • Multiple users
    • Dual Combination
    • Time Delay
      • Delay Period: 1-99 minutes
      • Open Period: 1-19 minutes
    • Time Delay override.
    • Silent Signal Alarm
      • Optional box required
    • Time Lock set, one standard lock period per day. (Special events takes precedence over Standard Week).
    • Languages: Manager LCD display in English, Spanish, French, German or Italian.

Part # 5020 Swingbolt Lock (RH)
Part # 5025 Swingbolt Lock (LH)



COMPTRONIC™ Electronic Safe Locks



Standard features on all COMPTRONIC™ Electronic Safe Locks:

  • Direct replacement for most mechanical locks.
  • Fast and simple to use for easy safe access.
  • All Combination changes and programming are easily made at keypad.
  • Uses two (2), 9V Alkaline batteries -Duracell® recommended. (E-Z keypad uses (1) 9V battery.)
  • Keypad feedback with beep and LED flash.
  • Multiple users.
  • Programmable Time Delay.
  • Motor driven bolt.
  • Wrong combination try penalty.
  • Internal Locker.
  • U.L. Type 1 listed.

COMPTRONIC™ Keypad Finishes:

  • Chrome - satin or bright
  • Brass - satin or bright
  • Black - matte only
  • Gold - 14K or 24K

Optional Security Enhancement Accessories:

  • Spy-Proof ® Cover.
  • Time Delay Status Indicator.
  • Bolt Position Indicator.
  • Duress and Remote Activation Modules.
  • Audit Trail (Model 6124/25 only).

American Security Gun Safes



We have been providing safes and security solutions to the banking industry
since 1948. This type of high security technology is built right into our gun safes. Before the American Security name is attached, each safe must undergo a rigid 28-point inspection. We produce over 60,000 safes each year and we take protecting our customers' assets very seriously. That's how we got to be the largest security safe manufacturer in the world, and that's why you can't buy a better gun safe than an American Security safe.

Distinctive Style:

  • Interior is fully upholstered in a handsome desert prophecy suede fabric.
  • Diamond-stitched door panel with built-in mirror.
  • Interior is automatically illuminated with lights when door is opened.
  • Full-length mirrored back panel enhances interior.
  • Outside features a spy-proof key locking dial and decorative 5-point handle in brass or chrome.

Fire Protection

  • Fire rated at 1550ºF for a period of 2 hours. Designed to maintain an interior temperature of less than 350°F.
  • Massive 2" thick body and 2-3/4" door is filled with a proprietary fire resistant material ensuring the contents remain safe.
  • Palusol™ door seal expands up to 8 times its original thickness when exposed to high temperatures.

Unsurpassed Security

  • Equipped with a U.L. Listed Group II lock protected by a massive drill shattering hard plate and two additional spring-loaded relocking devices.
  • 12 Massive 1-1/2" diameter brass plated solid steel locking bolts provide superior door security.
  • Defense barrier of inner and outer steel plates filled with a fire insulating material to withstand concentrated attacks.

Distinctive Style:

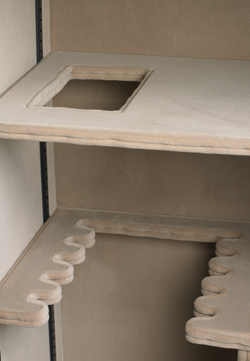

  • Upholstered in our standard plush tan pin-dot fabric.
  • Outside features a spy-proof key locking dial and decorative 3-point handle in brass or chrome.

Fire Protection

  • Fire rated at 1550ºF for a period of 2 hours. Designed to maintain an interior temperature of less than 350°F.
  • Massive 31/2" thick body encloses a high security fire resistant material to protect against intense fires.

Unsurpassed Security

  • U.L. Listed burglary resistant TL-30 model is built to withstand severe attacks from the sophisticated equipment used by today's burglars.
  • Massive 3-1/2" body and 2-3/4" door (total door thickness: 5-3/4") built with a defense barrier of outer and inner steel plates creating a single structure enclosing a unique, burglary resistant high security material.
  • Equipped with a U.L. Listed Group 2M lock protected by a massive drill shattering hard plate and two additional spring-loaded relocking devices.
  • 10 Massive 1-1/2" diameter chrome plated solid steel locking bolts provide superior door security.
Model
Dimensions
H x W x D
Gun Capacity
Weight
Locking Bolts
Bolt Dia
U.L. Listing
Door Thickness
Body Thickness
Fire Rating

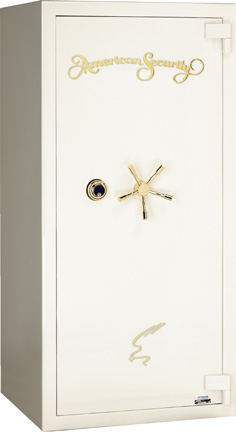

SE6831

72" x 35" x 29-1/2"
12-18-30
1,800
12
1-1/2
RSC
2-3/4"
2"
2 HR
1550°F

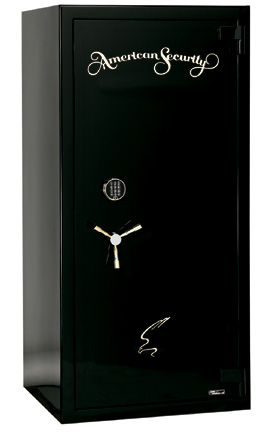

RF6528
72" x 35" x 29-1/2"
12-18-30
3,455
10
1-1/2
TL-30
2-3/4"
3-1/2"
2 HR
1850°F

BF Series Gun Safe

Real Security:
Safe Body:

  • Body encloses a proprietary DryLight insulation eliminating the use of gypsum board.
  • 2" total wall thickness on all sides.
  • Two layers of steel consisting of an outer and inner steel liner for dual security protection.
  • 4 pre-cut anchor holes and 1 pre-cut electrical access hole.
  • Awarded the U.L. Residential Security Container (RSC) burglary classification.

Safe Door:

  • 1/2" steel plate door combined with 1" DryLight insulation.
  • 10 massive 1-1/2" thick locking bolts to provide superior door security.
  • Commercial grade high security exterior hinges for additional security and full access to the elegant interior.
  • Equipped with a U.L. listed group II lock protected by a massive hardplate and internal re-locker.
  • Equipped with external relocker for additional security.
  • Bolt detent system holds bolts in the open position preventing damage to bolt work & body.

Unmatched Fire Protection

  • Mercury class II fire protection of 1275 degrees for 90 minutes. Designed to maintain an interior temperature of less than 350 degrees.
  • New DryLight insulation is poured between inner and outer steel walls for premier fire protection.
  • Dual fire seals around entire door. Silicon seal on door jamb & Palusol seal on door giving the door a snug fit with added fire protection.
  • Palusol seal expands up to 8 times its original thickness when exposed to heat.

Quality Style Throughout

  • Unique mirrored back wall in the interior of the safe providing higher interior visibility.
  • Bold zinc die cast polished brass or chrome logos.
  • Spy-proof key locking dial with decorative three spoke handle
  • Interior shelves fully upholstered in a pin-dot fabric.
  • Interior shelving can be adjusted to meet your unique
    storage needs.
  • Interior door panel finished in full pin-dot fabric
  • Select from five hand-painted high-gloss, four textured finishes (Sandstone and Granite updated) and Two-Tone finish (Onyx High Gloss door, Black Textured body).
Model
Dimensions
H x W x D
Gun Capacity
Weight
Locking Bolts
Bolt Dia
U.L. Listing
Door Thickness
Body Thickness
Fire Rating

BF7240

71-1/4" x 40" x 26"
12-18-24-30-42
1,305
10
1-1/2
RSC
1/2" Steel Plate
4-3/4" Total
2"
90 MIN
1275°F
NEW! BF6636
59-1/4" x 36" x 26"
12-23-35
1,249
10
1-1/2
RSC
1/2" Steel Plate
4-3/4" Total
2"
90 MIN
1275°F
BF6030
59-1/4" x 30" x 26"
12-18-30
885
10
1-1/2
RSC
1/2" Steel Plate
4-3/4" Total
2"
90 MIN
1275°F
BF6032
59-1/4" x 30" x 21"
8-14-22
810
10
1-1/2
RSC
1/2" Steel Plate
4-3/4" Total
2"
90 MIN
1275°F

LP Series Gun Safe



LP6036E / LP6032
LP6030 / LP5924-E:

Distinctive Style:

  • The quality-packed, affordably-priced LP Series offer an unbeatable value, featuring a new all-velour interior including back cover and fire walls.
  • Black textured finish with bold zinc, die-cast polished brass logos.
  • Polished brass, spy-proof dial and "L" handle.
  • External hinges easily provide full access to your safe.

Theft Defiant:

  • High strength unitized 12-gauge solid steel body.
  • Massive 1-3/4" recessed door constructed of a solid 1/4" solid steel plate and a fire insulating material.
  • Equipped with a Group II, key-changeable combination lock with an internal re-locker and brass spy-proof dial and ring.
  • ON ELECTRONIC MODELS (E): Equipped with an ESL10XL UL Listed Type I Electronic Lock with polished brass keypad.
  • 3-way boltwork with 5 active 1-1/4" diameter chrome-plated steel locking bolts and three 1-1/4" deadbolts.
  • Each safe offers 4 pre-cut anchor holes and 1 pre-cut electrical access hole.

Theft Defiant:

  • The LP6036, LP5924, LP6032 and LP6030 offer fire protection of 1200°F for a period of 45 minutes. Designed to maintain an interior temperature of less than 350°.
  • Palusol™ door seal expands up to 8 times its original thickness when exposed to high temperatures sealing safe contents from harm.

    Model
    Outside Dimensions
    Thickness
    Door Body

    Wt
    (Fire)

    Int. Capacity
    Bolts
    LP5924/E
    59-1/4H x 24W x 18D
    1-3/4" - 12ga
    478
    8-8-16
    5
    LP6030
    59-1/4H x 30W x 26D
    1-3/4" - 12ga
    692
    14-14-28
    5
    LP6032
    59-1/4H x 30W x 21D
    1-3/4" - 12ga
    632
    10-10-20
    5
    LP6036E
    59H x 36W x 26D
    1-3/4" - 12ga
    782
    17-17-34
    5
    W Series
    55-1/4H x 17-3/4W x 16D
    3/16” 12ga
    232
    11 Gun
    5
    59-1/4H x 24W x 18D
    1/4” 12ga
    352
    10-10-20
    5
    Horizontal Cabinet
    18H x 54-1/4W x 22D
    3/4” 12ga
    450*
    8 gun
    5

Handgun Safes

  • State-of-the-art DL4000 electronic lock.
  • Heavy 16 gauge solid steel
    construction.
  • Pry-resistant recessed 10 gauge door with internal hinges.
  • Two tempered-steel live bolts.
  • Fits in a drawer and only
    requires 5” clearance.
  • Key override system.
  • Excellent for protecting valuables, handguns or laptop computers.
  • CAL DOJ approved.
  • Deep blue powder coated finish with chrome hardware.
  • Heavy-duty chrome handle.
  • Strong, pry-resistant chrome locking bolt.
  • Interior cushioned with foam lining to protect against scratches.
  • Easy to change combination with programmable override code.
  • 9V DC battery provides over 5,000 openings with low-battery indicator.
  • External auxiliary battery connection.

    OPTIONAL PB2 Quick Release Anchor Plate

    Home Security Safes

    Distinctive Style

    • Protect your important documents, cash and other valuables conveniently at home. The American Security Home Safes series offer an unbeatable value, featuring a rich velour back cover and fire walls with durable American Oak wood finish interior.
    • Deep blue textured finish with bold, elegant American Security logo.
    • Spy-Proof dial and chrome “L” handle.
    • External hinges easily provide full access to your safe.

    Fire Protection

    • Fire protection of 1200°F, for a period of 30 minutes. Designed to maintain an interior temperature of less than 350°F.

      Theft Defiant

      • High strength
        unitized 12 gauge
        solid steel body.
      • Massive 1-1/8”
        recessed door constructed of a 1/4” solid steel plate and a fire insulating material.
      • Equipped with a 3 wheel combination lock protected by a drill resistant hard plate. (U.L. listed Group II combination or electronic lock available).
      • 3-way boltwork with 5 active 1-1/4” diameter chrome-plated steel locking bolts. (2020 model has 4 active
        locking bolts).
      • Each safe offers 4 precut anchor holes.

    Vault Door

    Make your vault room double as a storm shelter with our in-swing vault door. Offering the same features as our standard vault door, the in-swing vault door will insure opening from the inside even if debris has blocked the door.

    As time goes on, all collections grow. Not just guns, but personal heirlooms, business and family records, jewelry, photographs and works of art. Instead of buying three different safes over a lifetime, the AMSEC vault door turns your room into a security center. It is designed for easy installation that retrofits a standard 80" x 30" opening. Massive 1" door offers a defense barrier constructed of 1/8" inner and outer steel plates filled with a fire insulating material that provides a barrier against extreme heat. Select from four textured finishes. Each vault door offers elegant scrollwork and pinstripes accompanied by the renowned American Security logo. A brass spy-proof key locking dial with decorative 3-point handle is standard. With ten massive 1¼" thick bolts, you can rest assured that your valuables are protected.

  • Adjustable doorframe slides together to fit a wall thickness of 4-1/2" to 7-1/2"
  • Minimum opening required: 79-1/2"H x 29-1/2"W
  • Outside: 83-1/8"H x 36-1/2"W
  • Door opening: 77-1/2"H x 26-1/2"W
    In-Swing: 77-1/2" H x 20-5/16" W
  • Weight: 395 lbs. - Shipping Weight 615 lbs.













Licensed by the State of Tennessee - Bonded & Insured - Industrial - Commercial - Residential - Locks - Safes - ADA Compliance - Fire Code Compliance
